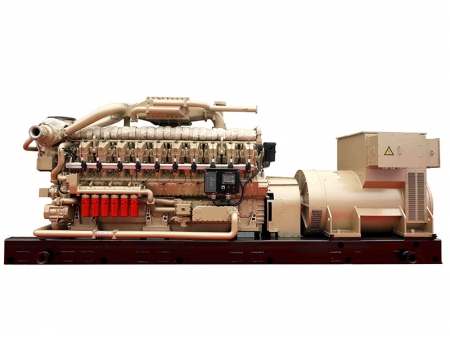

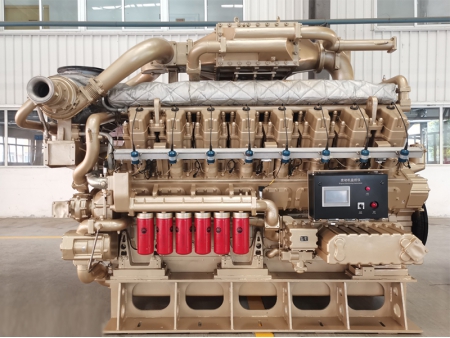

Natural Gas Generator (1200-2000kW)
Request a Quote
- 1200 kW gas generator
- 1600 kW gas generator
- 2000 kW gas generator
Click Here to
Advantage
This long-stroke gas engine series offers a single-unit power range of 1200–2200 kW and is compatible with multiple fuel types, including natural gas, coal mine gas, and biogas. This natural gas generator meets a wide range of application needs, with increasing market demand.
Features of Natural Gas Generator
- Turbocharger pre-mixing technology allows gas and air to be drawn into the compressor simultaneously, making it suitable for low-pressure gas
- Rarefied combustion technology controlled by WOODWARD’s E6 system to precisely regulate the air–fuel ratio, achieving optimized combustion even under high-altitude conditions
- Single-point injection with closed-loop air–fuel ratio control technology enabling the engine to adjust air and gas supply according to different operating conditions and speeds for optimal performance
- Efficient and reliable intake and exhaust system, using a high-pressure-ratio and large-flow turbocharger to increase intake pipeline flow area and improve intake efficiency
- High-efficiency, low-resistance plate-type oil cooler enhances cooling efficiency and increases the heat-exchange surface for both air and lubricating oil.
Technical Parameters of Natural Gas Generator
| Genset Model | 1600GF-T | |||
| Alternator model | Brushless excitation, automatic voltage regulation | |||
| Rated power | 1200 kW | 1600 kW | 2000 kW | 2200 kW |
| Rated voltage | 400V/6300V/10500V/480V/13800V | 400V/6300V/10500V/480V/13800V | 400V/6300V/10500V/480V/13800V | 400V/6300V/10500V/480V/13800V |
| Rated frequency | 50/60 Hz | 50/60 Hz | 50 Hz/60 Hz | 50 Hz/60 Hz |
| Rated power factor | 0.8 | 0.8 | 0.8 | 0.8 |
| Protection class | IP23 | IP23 | IP23 | IP23 |
| Insulation class | H | H | H | H |
| Engine Model | L12V200ZLT-2 | L16V200ZLT-2 | L20V190ZLT-2 | L20V200ZLT-2 |
| Type | Four strokes, V-type, turbocharged, iInter-cooling, spark plug ignition | |||
| No. of cylinder | 12 | 16 | 20 | 20 |
| Bore | 200 mm | 200 mm | 190 mm | 200 mm |
| Stroke | 255 mm | 255 mm | 255 mm | 255 mm |
| Total displacement | 96.1 L | 127.3 L | 144.6 L | 160.2 L |
| Rated speed | 1000 r/min, 1200 r/min | 1000 r/min, 1200 r/min | 1000 r/min, 1200 r/min | 1000 r/min, 1200 r/min |
| Rated power | 1320 kW | 1760 kW | 2200 kW | 2400 kW |
| Gas consumption | ≤9000 kJ/kW.h | ≤8770 kJ/kW.h | ≤8600 kJ/kW.h | ≤8600 kJ/kW.h |
| Oil consumption | ≤0.3~0.6 g/kW.h | ≤0.3~0.6 g/kW.h | ≤0.3 g/kW.h | ≤0.3 g/kW.h |
| Cooling type | Open type-cooling tower/Closed type-vertical or horizontal radiator | |||
| Lubrication method | Pressure and splash lubrication | Pressure and splash lubrication | Pressure and splash lubrication | Pressure and splash lubrication |
| Starting method | Electric starting | Electric starting | Electric starting/Air starting | Electric starting/Air starting |
The high-energy and high-reliability ignition system is chosen to ensure more stable and even combustion in each engine cylinder.
Application Cases
CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
