ST30130TEV Electric Skid Steer Loader
Request a Quote
Tracked electric skid loader delivering up to 8 hours of operation on a single charge
- Hydraulic flow for attachments
85L/min - Pressure
21MPa - Power
30kW - Max. Speed
2600rpm
- Powered by a lithium iron phosphate battery system for zero-emission, eco-friendly performance. The 70.64 kWh battery supports up to 8 hours of continuous operation, meeting the demands of intensive workloads
- Equipped with dual permanent magnet synchronous motors that deliver strong, responsive power with a maximum traction force of 35kN for efficient climbing and heavy-duty work
- Features an EBI pilot control joystick, providing precise, smooth handling and reducing operator fatigue
- Hydraulic power output of 30kW with an auxiliary hydraulic flow of 85 L/min, compatible with a wide range of attachments
- Minimum turning radius of just 1600 mm, enabling flexible operation in narrow or confined workspaces
Specifications

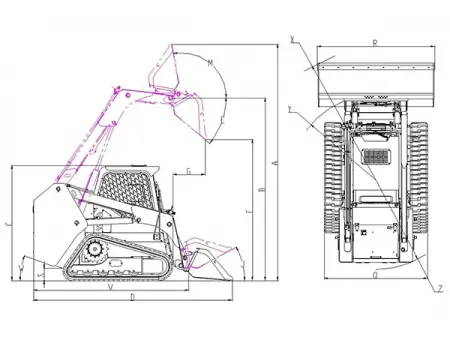

Basic Dimensions
| A | Working height (fully lifted) | 4390mm |
| B | Articulation height (fully lifted) | 3393mm |
| C | ROPS height | 2140mm |
| D | Total length (with bucket) | 3695mm |
| E | Downward tilt angle (fully lifted) | 40° |
| F | Dump height | 2625mm |
| G | Dump distance | 600mm |
| J | Upward tilt angle | 30° |
| M | Max. upward tilt angle | 100° |
| Q | Total width (without bucket) | 1920mm |
| S | Ground clearance | 230mm |
| R | Bucket width | 2180mm |
| W | Departure angle | 20° |
| V | Total length (without bucket) | 2885mm |
| Y | Turning radius (without bucket) | 1600mm |
| X | Turning radius (with bucket) | 2430mm |
| Z | Rear turning radius | 1660mm |
Technical Parameters
Battery System
| Battery Capacity | 70.64kWh |
| Battery Type | Lithium iron phosphate (LFP) |
Travel System
| Power | 2×35kW |
| Max. traction force | 35kN |
Hydraulic System
| Hydraulic flow for attachments | 85L/min |
| Pressure | 21MPa |
| Power | 30kW |
| Max. Speed | 2600rpm |
Technical Parameters
| Rated load | 1300kg |
| Tipping load | 2600kg |
| Operating weight | 4580kg |
| Travel speed (low/high) | 8/14km/h |
Main Configurations
| Control mode | Pilot hydraulic control |
| Engine | Lithium iron phosphate battery |
| Travel motor | Permanent magnet synchronous motor |
| Control joystick | EBI pilot control joystick |
| Working pump | Casappa gear oil pump |
| Hydraulic quick coupler | FASTER modular quick coupler |
| Chassis structure | Integrated frame |
Attachments
| Optional attachments | Applications | Notes |
| 4-in-1 Bucket, Breaker Hammer, Planer, Power Blower | Municipal and Road Maintenance | Planer and disc trencher require high-flow hydraulics |
| Manhole Cover Planer, Concrete Mixer Bucket, Lifting Hook | Manhole replacement | Manhole planer requires high-flow hydraulics |
| Angled Sweeper, Snow Plow, Snow Blower | Winter snow removal & ice control | Snow blower requires high-flow hydraulics |
| Tree Transplanter, Tree Shear, Mower, Auger, Wood Chipper | Landscaping, forestry, orchard maintenance | |
| Land Clearing Machine, Tree Shear, Wood Chipper | Forest clearing & fire prevention | Land clearing machine requires high-flow hydraulics |
