TS100X Skid Steer Loader
Request a Quote
Compact track loader with rated operating capacity of 1200kg for construction operations in rugged terrains
- Operating weight
4800kg - Rated load
1200kg - Bucket capacity
0.6m³ - Max. speed
12/18km/h
- High-strength rubber track system: Ensures exceptional ground traction, stability, and terrain adaptability, allowing reliable operation on uneven or rocky surfaces

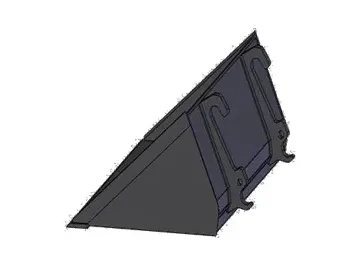

- Wide 2030 mm bucket design: Provides increased loading volume and higher operational efficiency, making it ideal for large-scale material handling tasks
Specifications
| Model | TS100X |
| Operating weight | 4800kg |
| Rated load | 1200kg |
| Bucket capacity | 0.6m³ |
| Max. speed | 12/18km/h |
| Max. traction | >30kN |
| Max. breakout | ≥ 20kN |
| Lifting time of boom | 7s |
Engine
| Manufacturer | Weichai |
| Model | WP4.1 |
| Rated power | 74kW/2200rpm |
| Engine displacement | 4.088L |
| Emission standard | China III |
Dimensions
| Overall operating height | 4070mm |
| Height to bucket hinge pin | 3150mm |
| Height to top of cab | 2160mm |
| Height to bottom of level bucket | 2983mm |
| Overall length without bucket | 3000mm |
| Overall length with bucket | 3795mm |
| Dumping angle at maximum height | 40° |
| Dumping height | 2450mm |
| Dumping reach | 700mm |
| Rollback of bucket on ground | 30° |
| Rollback of bucket at full height | 104° |
| Wheelbase | 1500mm |
| Ground clearance | 200mm |
| Angle of departure | 20° |
| Front turning radius without bucket | 1365mm |
| Front tuning radius | 2439mm |
| Rear tuning radius | 1617mm |
| Rear axle to bumper | 938mm |
| Track width | 1654mm |
| Width | 1994mm |
| Bucket width | 2030mm |
