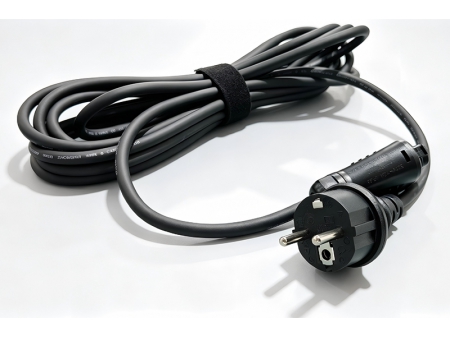

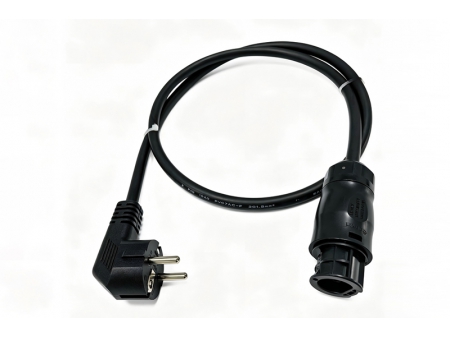

European CEE 7/7 Schuko Plug to BC05A AC Solar Connector Cable Assembly
Request a Quote
This cable assembly integrates a European CEE 7/7 Schuko plug with a Betteri BC05A series AC photovoltaic connector. It is designed for AC-side connection in solar microinverter systems, PV equipment, and energy storage applications across European markets and other regions using CEE 7/7 Schuko-compatible plugs.
Technical Specifications
| Item | Specification |
| Plug Model | ZH-1, ZH-3 |
| Rated Current (Plug Side) | 16A |
| Rated Voltage (Plug Side) | 250V AC |
| Plug Type | European CEE 7/7, Schuko |
| AC Solar Connector Model | BC05A (customizable) |
| Connector Type | AC solar connector (compatible with microinverters and AC-side PV systems) |
| Environmental Compliance | RoHS, REACH |
- CEE 7/7 Plug Structure: The CEE 7/7 Schuko plug has two round pins and a hybrid grounding design. It includes side earthing contacts for Type F sockets and a grounding hole for Type E sockets, allowing compatibility with both CEE 7/3 Schuko and CEE 7/5 French-style socket systems. This design supports a broad use in European PV installation environments.
- PV Connector Compatibility: Fitted with a Betteri BC05A series AC connector for compatible microinverters and AC-side PV systems. The connector supports stable power transmission between the microinverter and the mains-side connection point.
- Certification Support: The plug can be supplied with certification options including VDE, TÜV Rheinland, KEMA-KEUR, NF, CEBEC, NEMKO, SEMKO, FIMKO, and DEMKO. The AC connector can be configured to meet relevant international safety requirements.
- Environmental Compliance: The complete cable assembly can be supplied in RoHS- and REACH-compliant configurations, meeting environmental compliance requirements for global PV markets.
- Custom Configuration: Cable length, insulation material, sheath material, and connector termination can be customized to meet different solar project requirements.
- Solar panel-to-inverter connection for residential and commercial PV systems in CEE 7/7 standard markets
- Power connection for photovoltaic energy storage systems
- Power supply for solar microinverters, optimizers, and PV monitoring equipment
- Custom PV system wiring for projects in European markets
- CEE 7/7 Schuko plug features a safety grounding design and supports compliance with European electrical safety requirements
- The BC05A PV connector offers an IP68 protection rating for dust and water resistance, making it suitable for outdoor PV system installation
- Cable length, connector termination, and cable material can be customized to meet specific PV system requirements
- Each complete assembly undergoes 100% electrical performance and safety testing before delivery
