Horizontal Laboratory Disc Bead Mill, RTSM-0.08BJD
Request a Quote

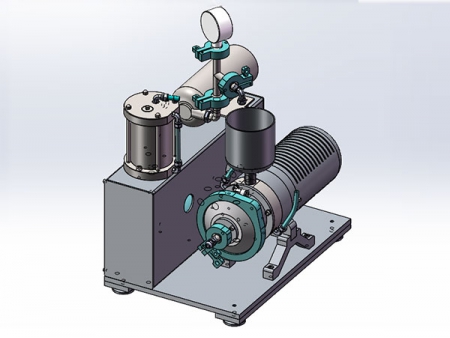

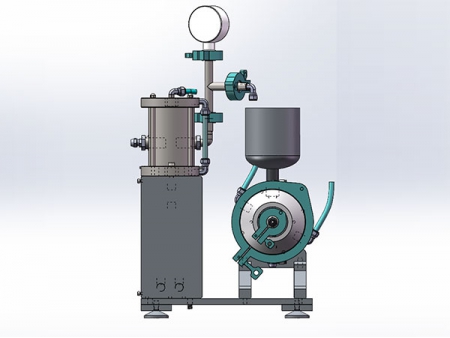

ROOT is excited to unveil our advanced RTSM-0.08BJD disc bead mills that are bespoke for laboratory uses, like researches and small-scale experiments. This grinding machine can achieve accurate performance by ensuring micron (1-15μm) to sub-micron (0.8-1μm) fineness. Also, the small batch sand mill can achieve smooth discharge of materials, with the configuration of efficient cooling system and micron-level gap dynamic separation system. This is why this horizontal laboratory disc bead mill is especially suitable for grinding materials like water-based coatings and paints, pesticides, pigments and dyes.
Features
- Budget-friendly and suitable for developing new products, with only 180 ml of material is required for a single experiment;
- Easy cleaning, 5 minutes are enough for machine cleaning;
- User-friendly design, frequently used parts feature quick installation, only requiring 5 minutes to complete disassembly and assembly;
- 0.1 mm grinding zirconia beads can be used;
- Easy operation, control panel is integrated into the machine body.
Specifications
- Model No: RTSM-0.08BJD
- Volume: 0.08L
- Power: 1.1kW
- Materials of Inner Chamber Component: Silicone Carbide
- Materials of Outer Chamber Component: SS304 Stainless Steel
- Grinding Principle: Pin Type
- Materials of Rotor Component: Ceramic
- Max. Line Speed: 7.5m per second
- Materials of Screen Component: SS304 Stainless Steel
- Operation Control: Button Control
- Mechanical Seal: Double-end Container Type
- Pneumatic Diaphragm Pump: Peristaltic Pump Type
