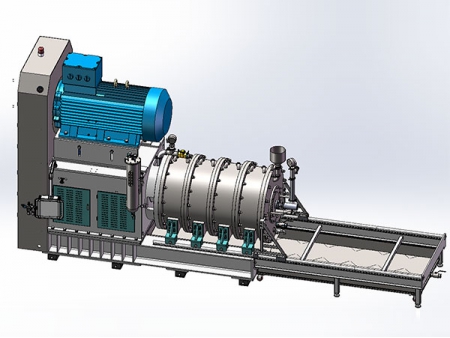

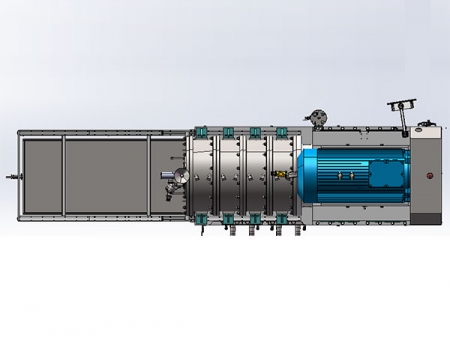

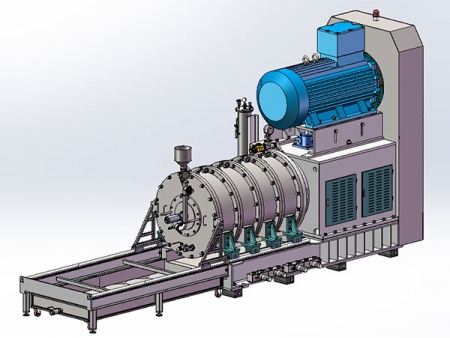

Horizontal Pin Bead Mill, RTSM-1000BJP

Horizontal Pin Bead Mill, RTSM-1000BJP
Horizontal Pin Bead Mill, RTSM-1000BJP
Horizontal Pin Bead Mill, RTSM-1000BJP
Horizontal Pin Bead Mill, RTSM-1000BJP
Request a Quote

This horizontal pin bead mill can deliver micron-level and nano-level final fineness, which means this grinding machine is applicable for medium-to-low viscosity and smooth fluid materials. This bead mill features reasonably-designed rotor, which involves simulated and actual operation. This is why this horizontal grinding machine can operation with marvellous grinding efficiency, average-temperature operation and low energy cost. Given that, this pin bead mill is widely used in industries such as pigments, pesticides, fertilizers and ink.

Features
  • Certified mechanical design, durable service life for mechanical unit;
  • Formula can be easily imported and exported by simply pressing the button;
  • Slit-type grinding structure, high energy density;
  • Reasonable design of material flow channel, high grinding efficiency and uniform particle size;
  • Reasonable design of the discharge unit, self-cleaning screen is enabled to deliver long screen service life.
Specifications
  • Model No. RTSM-1000BJP
  • Volume: 1000L
  • Power: 500kW
  • Materials of Inner Grinding Chamber Component: Silicone Carbide
  • Materials of Outer Grinding Chamber Component: SS304 Stainless Steel
  • Grinding Principle: Pin Type
  • Materials of Rotor Component: SS304 Stainless Steel and PU (Polyurethane)
  • Max. Line Speed: 15m per second
  • Materials of Screen Component: SS304 Stainless Steel
  • Operation Method: PLC with Touch Screen
  • Mechanical Seal: Double-end Container Type
  • Pneumatic Diaphragm Pump: 3-inch Pneumatic Diaphragm Pump
