Horizontal Bead Mill, LDM Manufacturer

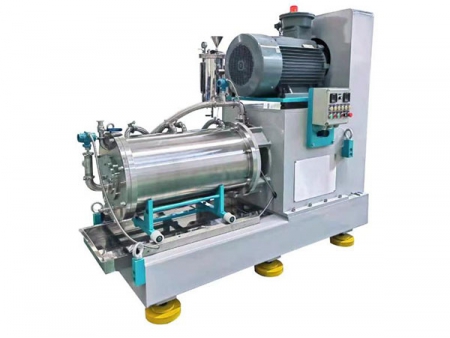

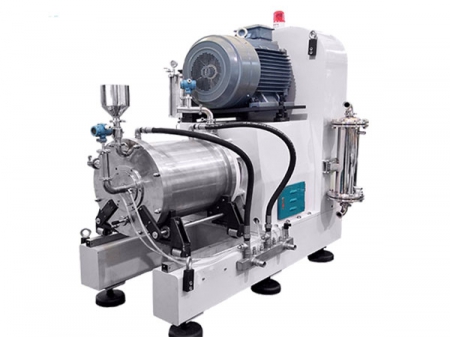

Horizontal Bead Mill, LDM

Request a Quote

View All: http://longlygroup.com/1-4-horizontal-bead-mill-ldm.html

Grinding Chamber Volume: 5L-100L
Fineness: 1μm-10μm (for D Type and G Type), 5μm-15μm (for C Type)
Solvent: water-based, oil-based
Viscosity: ≤20,000cps for D Type, ≤40,000cps for C Type, ≤60,000cps forG Type
Grinding Bead Size: 0.8-2.0mm (for C Type and G Type), 0.3-2.0mm (for DType)
Selectable Materials: tungsten carbide, polyurethane, zirconium oxide,silicon carbide

Features

Pin agitator strengthens the impact and shearing forces of grindingbeads on particles, greatly improving grinding efficiency;
Suitable for grinding materials that are difficult to disperse;
High grinding efficiency, corrosion resistance, no discoloration;
Rotor and front end cover are coolable, with excellent heatdissipation, applicable for grinding of heat or temperaturesensitive products;
Overpressure protection device is equipped to ensure constantpressure in the grinding chamber;
Automatic protection system for electrical components;
Patented dynamic screen separation system for separating grindingbeads, high flow without blockages;

Specifications

G Type —— Suitable for high viscosity materials

Model	Grinding Chamber Volume (L)	Drive Motor (kW)	Batch Capacity (L/H)	Media Size (mm)	Weight (kg)	Dimension (mm)
LDM-20G	20	45	50-600	0.8-2.0	approx. 1600	1730x900x1950

C Type —— Suitable for medium & low viscosity materials

Model	Grinding Chamber Volume (L)	Drive Motor (kW)	Batch Capacity (L/H)	Media Size (mm)	Weight (kg)	Dimension (mm)
LDM-5C	5	11	30-200	0.8-2.0	approx. 900	1500x950x1750
LDM-10C	10	15	40-400	0.8-2.0	approx. 1000	1500x950x17500
LDM-20C	20	22/30	50-600	0.8-2.0	approx. 1200	1700x1050x1900
LDM-30C	30	30/37	100-900	0.8-2.0	approx. 1300	1750x1050x1950
LDM-50C	50	45	300-800	0.8-2.0	approx. 1700	1950x1050x1950
LDM-60C	60	45	200-1200	0.8-2.0	approx. 1800	2000x1050x1950
LDM-100C	100	75/90	300-2000	0.8-2.0	approx. 3000	2500x1200x2200

D Type

Model	Grinding Chamber Volume (L)	Drive Motor (kW)	Batch Capacity (L/H)	Media Size (mm)	Weight (kg)	Dimension (mm)
LDM-5D	5	11	30-200	0.3-2.0	approx.900	1500x950x1750
LDM-10D	10	15	40-400	0.3-2.0	approx.1000	1500x950x1750
LDM-20D	20	22/30	50-600	0.3-2.0	approx.1200	1700x1050x1900
LDM-30D	30	30/37	100-800	0.3-2.0	approx.1300	1750x1050x1950
LDM-50D	50	37/45	200-1000	0.3-2.0	approx.1700	1950x1050x1950
LDM-60D	60	45	200-1200	0.3-2.0	approx.1800	2000x1050x1950
LDM-100D	100	75/90	300-2000	0.3-2.0	approx.3000	2500x1200x2200

Applications

Automotive Paint
Furniture Paint
Color Pastes
Dyes
Magnetic Materials
Industrial Paint
Ink
Pigment
Pesticide
