0.6/1 kV NYRY Cable(CU/PVC/SWA/PVC)
Request a Quote
NYRY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.
Specifications
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
Click below for specific parameters
- 1 Core
- 2 Core
- 3 Core
- 4 Core
- 5 Core
- 3 1 Core
- 4 1 Core
- 3 2 Core
| VV32/VLV32-0.6/1-kV-single-core | VV32/VLV32-0.6/1-kV-multi core |

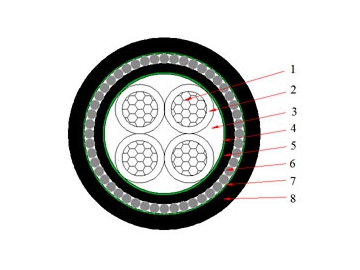

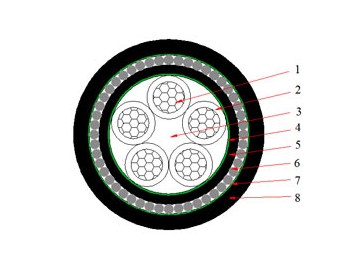

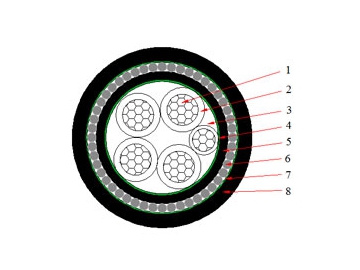

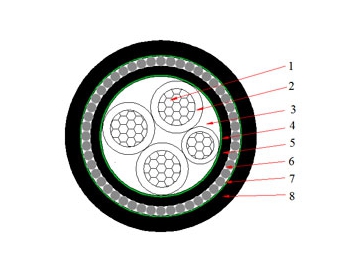

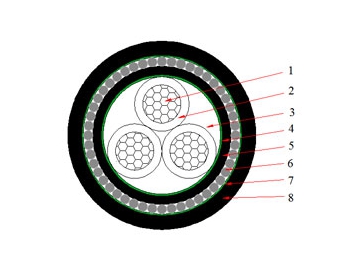

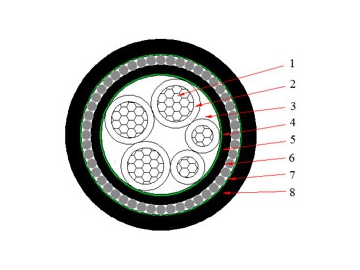

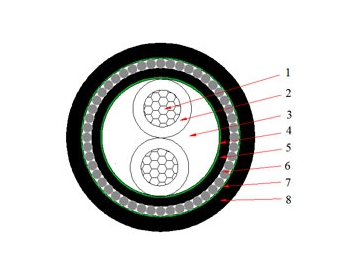

| 1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor 2. Insulation: Polyvinyl chloride PVC 3. Inner sheath: Polyvinyl chloride PVC 4. Armour: Non-magnetic steel wire 5. Binder tape: Non-hygroscopic material 6. Outer sheath: Polyvinyl chloride PVC | 1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor 2. Insulation: Polyvinyl chloride PVC 3. Filler: Non-hygroscopic material 4. Binder tape: Non-hygroscopic material 5. Inner sheath: Polyvinyl chloride PVC 6. Armour: Low carbon steel wire 7. Binder tape: Non-hygroscopic material 8. Outer sheath: Polyvinyl chloride PVC |
