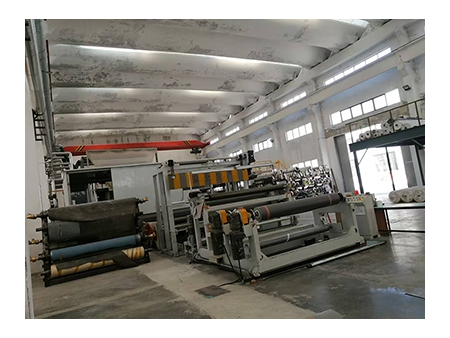

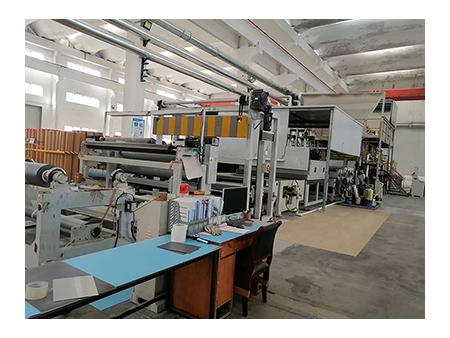

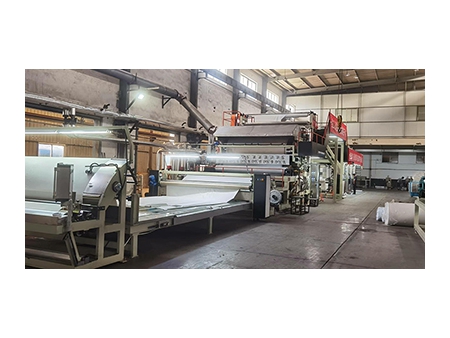

PVC Film Printing Laminating Embossing Machine (for PVC Flooring)
Request a Quote
Ideal for producing PVC flooring, this PVC film printing laminating embossing machine is capable of carrying out three processes in one machine. The PVC film is first printed, then combined with fiberglass for added durability. The final step involves heat embossing and cooling to achieve a reliable, resilient floor covering. The finished PVC flooring is suitable for commercial spaces such as hotels, hospitals, and shopping malls.
Specifications
- Roller width: 2200mm
- Effective width: 2000mm
- Machine speed: 30m/min
- Production speed: 1-20m/min
- Web tension range: 5-50kg
- Tension control accuracy: ±0.5kg
- Power consumption: 80kW
- Applicable material: PVC film fiberglass (one layer of PVC and one layer of fiberglass)

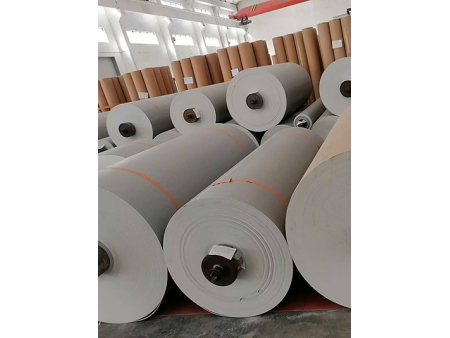

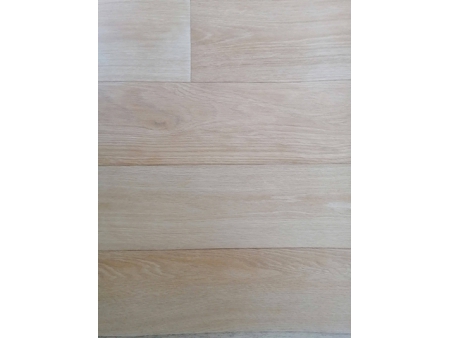

Application examples
Main Configurations
- Operates with servo motors and variable frequency drives for precise control.
- Features a PLC motion controller paired with a touchscreen for fully automated control.
- Equipped with an automatic tension control system using a swing rod mechanism.
- Includes multiple automatic alignment correction systems to maintain precise alignment and consistent output.
- Utilizes heat transfer oil (thermal oil) for efficient heating, with PID automatic temperature control ensuring consistent and reliable performance.
- Includes a main control cabinet and three operation panels, each featuring a touchscreen for easy control.
Customization Options
Customizable configurations are available based on specific production requirements:
- Number of layers for PVC flooring: 2-4 layers
- Thickness of PVC flooring: 0.2–3 mm
- Width of PVC flooring: 1–4.5 m
