KSS-III6.0 Spinal Fixation System
The KSS-III6.0 general purpose spinal fixation system comes with an offset connector that provides a ±16° range of motion. The connector has holes that allow the insertion of pedicle screws for realigning inwardly-curved spinal segments into their normal position. Using a spine distractor restores the normal foraminal height, thereby re-establishing the tension of the posterior ligaments.
Technical Specs of Spinal Fixation SystemProduct name | Material | Diameter (mm) | Length (mm) | Product ID No. |

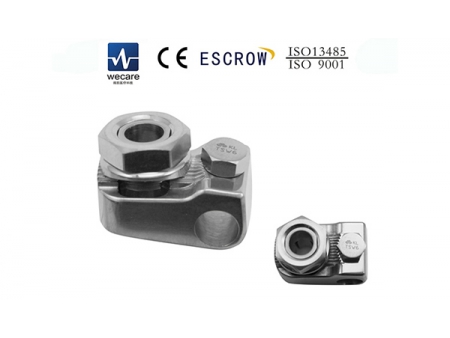

Offset connector | Titanium alloy | | | 6310000 |
Product name | Material | Diameter (mm) | Length (mm) | Product ID No. |

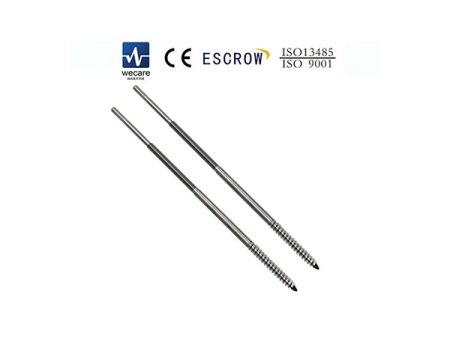

Extended pedicle screw | Titanium alloy | 5.5 | 30 | 63355 |
35 | 633553530 | |||
6.0 | 35 | 6336035 | ||
40 | 6336040 | |||
6.5 | 40 | 6336540 | ||
45 | 6336545 | |||
50 | 6336550 | |||
7.0 | 45 | 6337045 |
Product name | Material | Diameter (mm) | Length (mm) | Product ID No. |
EF6.0 cross connector | Titanium alloy | 6.0 | 50 | 6190050 |
60 | 6190060 | |||
70 | 6190070 | |||
80 | 6190080 | |||
90 | 6190090 |
Product name | Material | Diameter (mm) | Length (mm) | Product ID No. |
Rod | Titanium alloy | 6.0 | 50-180 (minimum increment of 10mm) | 6150050-180 |
200-360 (minimum increment of 20mm) | 6150200-360 |
