Posterior Fixation System
Request a Quote
, KSS-II5.5

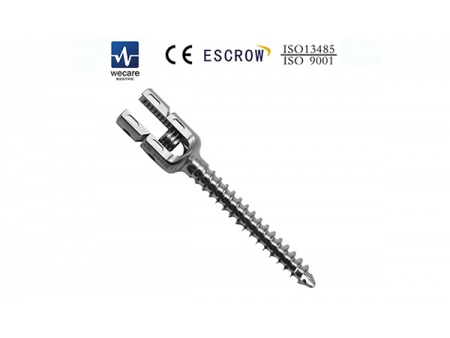

KSS-II5.5 pedicle screw features trapezoidal threads which minimize external radial load felt by the screw head, prevent the screw from slipping out of place, and keep spinal segments firmly aligned and stabilized.
KSS-II5.5 Spinal Fixation System

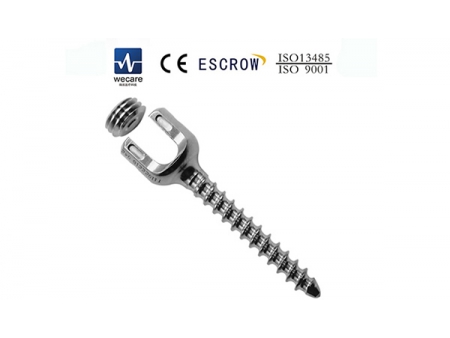

Low-profile, cancellous screws are best accommodating to spinal bones. Enlarged root diameter reduces the risk of screw snapping off the bone during or after operation. The open tulip end snaps up the rod easily, tightly, and in an elastic manner. Unique torx head screw design prevents slipping when surgeons are tightening the screw into the pedicle.
Technical Specs of Posterior Fixation SystemProduct Name | Material | Diameter (mm) | Length (mm) | Product ID No. |
KSS 5.5 Pedicle screw with open tulip head | Titanium alloy | 4.0 | 25 | 6214025 |
30 | 6214030 | |||
4.5 | 30 | 6214530 | ||
35 | 6214535 | |||
5.0 | 30 | 6215030 | ||
35 | 6215035 | |||
40 | 6215040 | |||
5.5 | 30 | 6215530 | ||
35 | 6215535 | |||
40 | 6215540 | |||
6.0 | 35 | 6216035 | ||
40 | 6216040 | |||
45 | 6216045 | |||
50 | 6216050 | |||
6.5 | 35 | 6216535 | ||
40 | 6216540 | |||
45 | 6216545 | |||
50 | 6216550 | |||
55 | 6216555 | |||
7.0 | 35 | 6217035 | ||
40 | 6217040 | |||
45 | 6217045 |
Product Name | Material | Diameter (mm) | Length (mm) | Product ID No. |

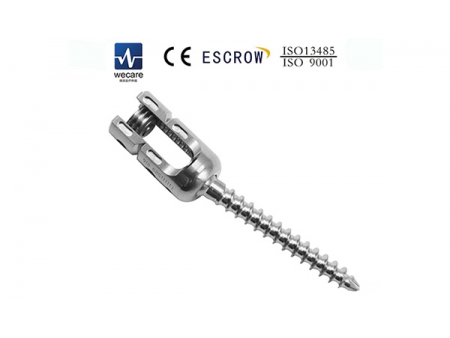

KSS 5.5 Multi-axial breakaway pedicle screw with open tulip head | Titanium alloy | 4.0 | 25 | 6234025 |
30 | 6234030 | |||
4.5 | 30 | 6234530 | ||
35 | 6234535 | |||
5.0 | 30 | 6235030 | ||
35 | 6235035 | |||
40 | 6235040 | |||
5.5 | 30 | 6235530 | ||
35 | 6235535 | |||
40 | 6235540 | |||
6.0 | 30 | 6236030 | ||
35 | 6236035 | |||
40 | 6236040 | |||
45 | 6236045 | |||
6.5 | 35 | 6236535 | ||
40 | 6236540 | |||
45 | 6236545 | |||
50 | 6236550 |
Product Name | Material | Diameter (mm) | Length (mm) | Product ID No. |
KSS 5.5 break-away pedicle screw with open tulip head | Titanium alloy | 4.0 | 25 | 6224025 |
30 | 6224030 | |||
4.5 | 30 | 6224530 | ||
35 | 6224535 | |||
5.0 | 30 | 6225030 | ||
35 | 6225035 | |||
5.5 | 35 | 6225535 | ||
40 | 6225540 | |||
45 | 6225545 | |||
6.0 | 35 | 6226035 | ||
40 | 6226040 | |||
45 | 6226045 | |||
50 | 6226050 | |||
6.5 | 35 | 6226535 | ||
40 | 6226540 | |||
45 | 6226545 | |||
50 | 6226550 | |||
7.0 | 35 | 6227035 | ||
40 | 6227040 |
Product Name | Material | Diameter (mm) | Length (mm) | Product ID No. |

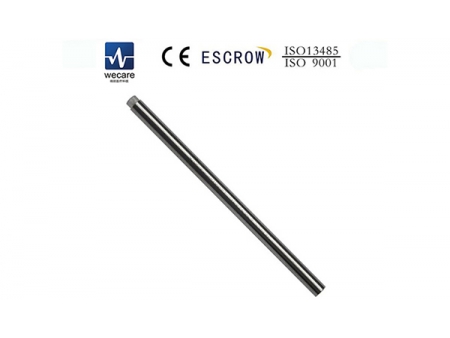

Rod | Titanium alloy | 5.5 | 60-120 (minimum increment of 10mm) | 6240060-120 |
140-360 (minimum increment of 20mm) | 62400140-360 |
Product Name | Material | Diameter (mm) | Length (mm) | Product ID No. |

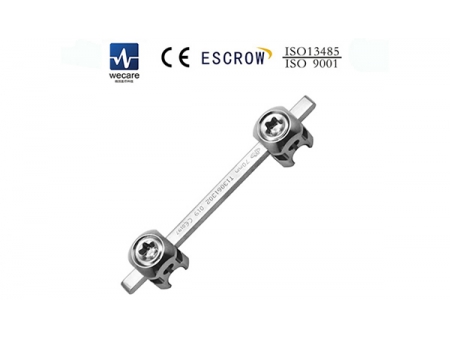

EF5.5 cross connector | Titanium alloy | 5.5 | 50 | 6290050 |
60 | 6290060 | |||
70/80 | 6290070/80 |
