Pallet Dispenser
Request a Quote

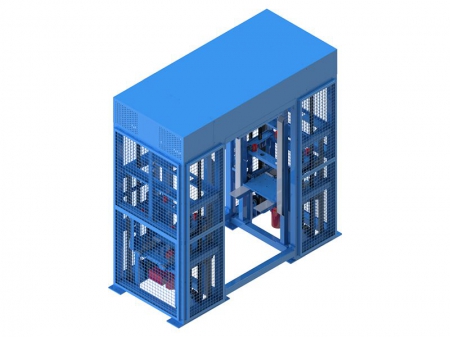

Pallet handling system for dispensing and collecting of empty pallets
Pallet dispenser is used to stack individual empty pallets from the main conveyor line or split stacked pallets into individual pallets and then output them to the conveyor line. The device can be equipped with roller or chain conveyors, ensuring adaptability while meeting the height requirements of the conveying surface. The improvement of the motor being placed at the bottom helps to reduce the overall height, making it more adaptable in various applications.
Transportable Materials
Pallet dispenser is suitable for handling various materials carried on suitable types of pallets.
Applicable Industries
EV battery, automated warehouse logistics, tobacco and alcohol industry, e-commerce retail, pharmaceuticals and food, automotive and construction materials, etc.
Features
- Pallet dispenser can be used with roller or chain conveyors.
- Utilizes a retractable fork mechanism.
- Modular design allows for easy maintenance and repair.
Technical Data
Parameter | |
Length mm | 870-1100mm |
Width mm | B 760mm |
Effective width B mm | 900≤B≤1200 |
Height H mm | 500mm |
Motor Brand | SEW, NORD, CPG |
Chain Brand | ZIQIANG CHAIN, CHOHO |
Bearing/Bearing Seat Brand | HRB/FSB, NSK/FSB, SKF/FSB, NSK/NSK |
Color | Powder coating with all RAL colors available. |
Nonstandard models can be customized. |
Product Information | ||
Basic Information | Load Capacity | ≤650kg |
Dispensing Time | 15/pcs | |
Temperature | 5℃ to 45℃ | |
Relative Humidity | ≤90% (No condensing) | |
Drive Mode (Conveying Unit) | Drive Motor | Gear motor |
Motor Power | 1.1kW (braked motor) | |
Motor Voltage | 380V | |
Brake Voltage | 220V | |
Drive Method | Chain | |
Installation | Ground Installation | Expansion bolts |
Ground Flatness | Level ground, error ≤5° | |
Height Adjustment | ±10mm |
