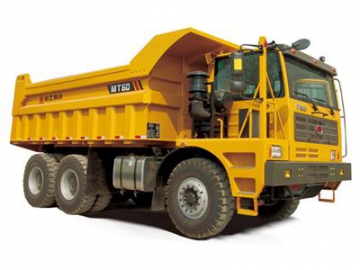

MT60 Rigid Dump Truck

Request a Quote

View All: http://ytocorp.com/

Overviews
The MT60 heavy duty dump truck can load up to 45 tons at a time, and reaches a maximum speed of 44km/hour. It is suitable for long distance transportation, road maintenance on rainy days, small scale mines and transportation of loosened materials.

Technical Parameters

Model MT60
Gross weight 23,000 kg
Max. payload (nominal payload) 45t
Engine WEICHAI WD12G375E211
Engine power 276Kw
Displacement 12L
TransmissionFAST 7DS180
Max. torque 1800Nm
Speed range 7 speeds forward and 1 reverse
Engine speed 2600rpm
Axles load 18T+25T+25T
Tyres 14.00-25-36PR
Max.travel speed 44km/h
Dump body capacity (struck) 26m³
Overall dimension (length × width × height) 8720×3300×3960mm

Features

The heavy duty dump truck is extremely reliable, due to its high strength, welded alloy steel chassis and reinforced dump mechanism.
This heavy duty dump truck is fuel efficient, allowing users to handle larger shipments at lower costs.
The front and rear suspension systems use multi-stage shock absorption, which extends the leaf spring service life, and retains its impact resistance.
This truck uses a fully hydraulic steering for greater comfort than mechanical steering.
The truck uses a fully hydraulic steering system to ensure flexible steering, stable performance and a low failure rate.
