Low Pulse Pre-Net Pulp Screen
Low Pulse Pre-Net Pulp Screen

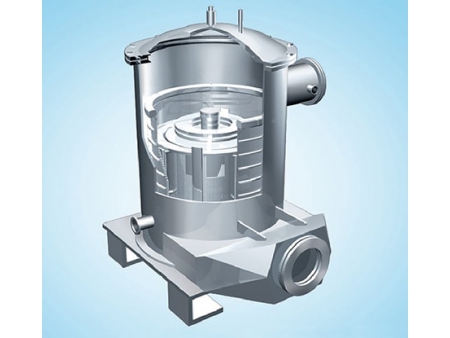

ZSM series low pulsepre-net pulp screen is a machine manufactured using advanced technology from
Features
1. Our low pulse pre-net pulpscreen features compact structure, high screening efficiency and low energyconsumption.
2. The adoption of pulse-adjustable twin propeller rotor structure ensuressmooth screening operation of our pulp screen.
3. The specially designed corrugated screen plate can produce ideal turbulentflow near the screen cut and always maintain a constant distance between thescreen cylinder and rotor, enabling the rotor to better clean the screen frameand thus avoiding problems like pulp blocking or flocculating.
4. The specially designed accepts pipe located under the screen cylinder androtor delivers screened accepts to the accepts outlet from all sides of thescreen, resulting in low pulse and smooth delivery of accepts.
5. The utilization of high precision processing and special manufacturingtechniques helps keep pulp consistency and prevent pulp lump.
Specifications of Low Pulse Pre-Net Pulp Screen
Model | ZSM1 | ZSM | ZSM2 | ZSM | ZSM3 | ZSM4 | ZSM | ZSM5 | ZSM6 | ZSM7 | ZSM8 |
Throughput L/sec | 120 | 200 | 310 | 420 | 600 | 810 | 860 | 1200 | 1600 | 2400 | 3400 |
Max. capacity T/24h | 60 | 100 | 150 | 200 | 290 | 390 | 430 | 570 | 800 | 1150 | 1650 |
Inlet consistency % | 0.1~1.5 | ||||||||||
Pressure of inlet pulp MPa | 0.05~0.5 | ||||||||||
Motor power Kw | 7.5 | 11 | 15 | 30 | 45 | 55 | 75 | 90 | 110 | 160 | 250 |
