Rack & Pinion Elevator
Seeking a rapid and effective means of vertical material and person transportation within your facility?
You found the ASC Rack & Pinion Elevator! Offering great speed, dependability, and simple maintenance, this elevator is ideal for high demand settings including industries, warehouses, supermarkets, restaurants, and events. The rack & pinion system guarantees lowest power loss and optimum efficiency, therefore enabling fast and safe movement. Furthermore, customizing choices allows you to match the elevator to your particular requirements, thereby ensuring a great fit for your business.

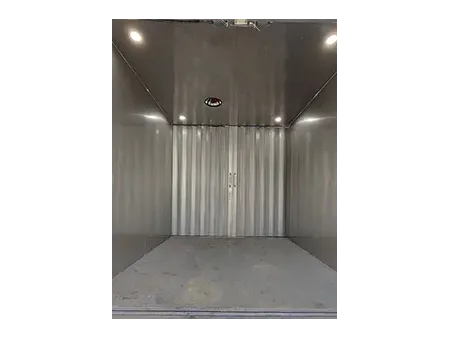

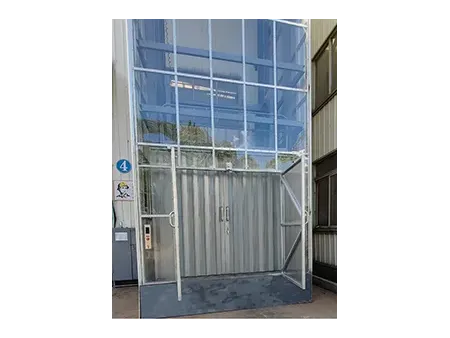

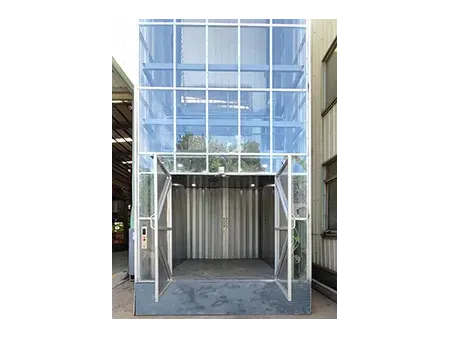

When the landing door opens, the cargo cage door remains closed; both doors can open simultaneously to allow access to the cargo cage interior.
| Model | | | | | |
| Rated Payload Capacity | 450kg | 1000kg | 1500kg | 2000kg | 3000kg |
| Motor Power | 2×2.2kW | 2×3kW | |||
| Safety Device | SAJ30-0.5 (0.35m/s) | SAJ50-0.5 (0.35m/s) | |||
| Rated Lifting Speed | 8m/min | ||||
| Mast Section Size (L×W×H) (mm) | 650×200×1508 (mm) /650×650×1508 (mm) | ||||
| Power Supply | 380V(±10%)/50HZ | ||||
Remarks
1. The dimensions of the cabin can be adjusted to suit your requirements.
2. The load capacity and lifting speed can be customized to meet your specific requirements.
3. The materials of external enclosures can be altered to accommodate the specific conditions of your environment.
