This fully servo driven tray forming machine is designed to construct various types of cardboard food containers and corrugated trays, such as hamburger boxes, hot dog trays, take-out boxes, french fry containers, paper lunch boxes, clamshell food boxes and more carton packaging products.

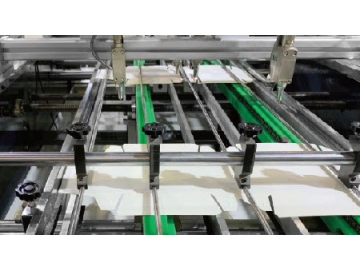

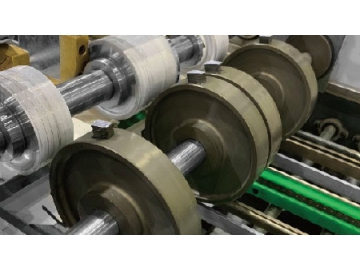

This single lane tray former consists of feeding unit, regulating unit, gluing unit, forming unit, finished products collecting unit and countin

Technical Specifications
Model ZX-1200
Speed 60-180pcs/minute Speed depends on cardboard blank size
Gluing method Water-based glue
Applicable material 150-600gsm cardboard, paperboard, paper, corrugated cardboard, fluted paper, etc.
Material thickness Max. 1.5mm
Blank size
L=Length: 100-430mm
W=Width: 100-630mm
H=Height: 15mm-320mm
Angle: 5-50 degrees
Total power 4.5kW
Weight 2000KG
Machine dimensions (L*W*H) 3520*1510*1420
Machine package size (L*W*H) 3550×1510×1700
Power supply 3-phase, 380V, 50/60Hz
Air source Compressed air at 6-10 bar needed
The product complies with the regulatory requirements and standards on CE conformity and therefore carries the CE mark.
Tray & Box Styles
Features
  • Servo controlled forming module provides higher precision in comparison with mechanical cam control;
  • Fully servo system is adopted to replace cam system;
  • Easy changeover can be performed in shorter time, enabling various types of products to be formed in an efficient manner;
  • The machine is completely controlled by PLC system, able to build complex cardboard boxes and trays;
  • Automatic collecting, storing and counting;
  • User-friendly control panel, safe and easy to operate;
  • Operating parameters are storable by PLC, greatly saving time;
