Request a Quote

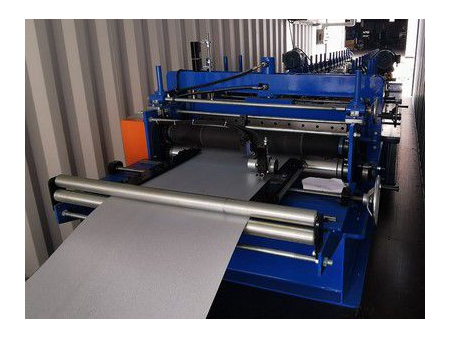

KLS38-220-530 portable standing seam roofing machine features compact structure and small foot print, which is convenient for use on construction site. This machine works with 0.7-1.0mm thick aluminum sheet and 0.5-0.8mm thick steel sheet. You can regulate the form of the end product: straight or tapered.

Samples
Profile Drawing

Profiles of diverse sizes and shapes can be customized.

Specifications
Model KLS38-220-530
Dimension 1800*1200*1000mm
Motor Power 1.5kW
Hydraulic Power 0.75kW
Forming Steps 8Steps
Forming Speed 8-15m/min
Voltage 380V/50HZ/3PH
Effective Width 220-530mm
Material Width 316-626mm
Height of Roofing 38mm
Aluminum Thickness 0.7-1.0mm
Steel Thickness 0.5-0.8mm
Control System PLC Control
Main Accessories
  • Main forming machine for make straight and tapered roof
  • 5 Tons Manual Uncoiler
  • Auto Seamer
  • Hand Seamer
  • PLC computer controlling system with touch screen (Brand: Schneider)
  • Hydraulic Forming Cutter
  • Device for Making Tapered Standing Seam Roofing
  • Run Out Table
  • Operation Manual

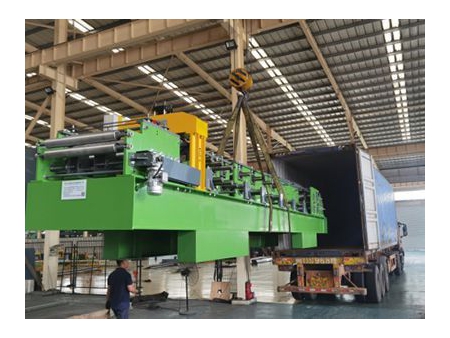

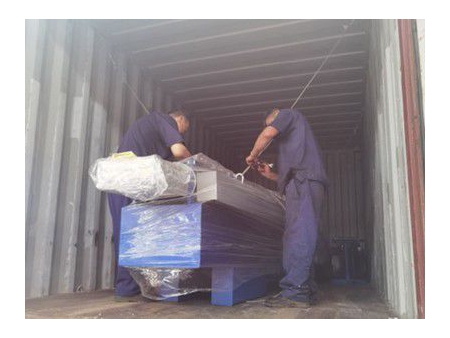

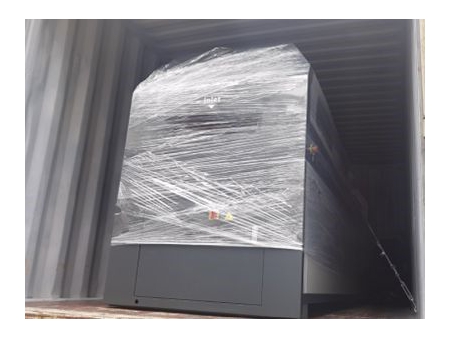

Transportation Package
