YX65-400 Standing Seam Roofing Machine
YX65-400 standing seam roofing machine is used for roll forming straight and tapered profiles of 400mm in width. This metal roofing machine can roll form aluminum material with thickness of 0.7-1.0mm and steel material with thickness of 0.5-0.8mm. Adopting PLC control system realizes automatic production in an easy manner. Compact structure allows this roofing machine to be loaded in a 20GP container for easy transportation to the construction site.
| Model | YX65-400 |
| Dimension | 5800*1600*1500mm |
| Motor Power | 7.5KW*2 |
| Hydraulic Power | 2.2KW |
| Forming Steps | 13Steps |
| Forming Speed | 8-15m/min |
| Voltage | 380V/50HZ/3PH |
| Effective Width | 400mm |
| Material Width | 575mm |
| Height of Roofing | 65mm |
| Aluminum Thickness | 0.7-1.0mm |
| Steel Thickness | 0.5-0.8mm |
| Control System | PLC Control |
-
-
Hydraulic post cutter is made of Cr12Mov mold steel, with HRC60-62 heat treatment for high quality and long service life.
-
-
Roller is made by high quality 45# steel with CNC lathes and heat treatment for long service life. Hard chrome plating is optional.
-
-
Tapered Forming both size use for the tapered profile forming, two times forming for the tapered profile.
-
-

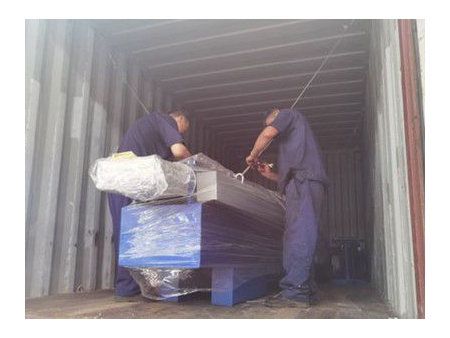

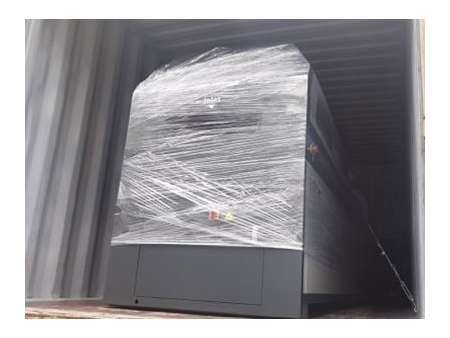

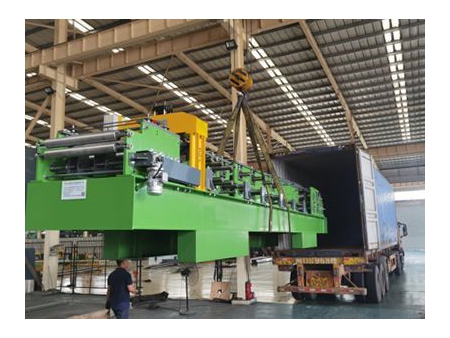

Available to be loaded in a 20GP container.
-
-
Auto Seamer
- Main Forming Machine for make Straight and Tapered Roof
- 5 Tons Manual Uncoiler
- 20GP New Container
- Auto Seamer
- Hand Seamer
- PLC Computer Controlling System with Touch Screen (Brand: Schneider)
- Hydraulic Forming Cutter (2 sets, one set for YX65-400, one for YX65-425)
- Device for Making Tapered Standing Seam Roofing
- Run Out Table
- Operation Manual
