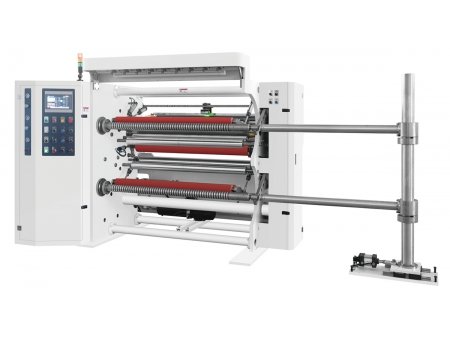

WFQ-1000H/1800H High Speed Slitting Machine
Request a Quote
View All: http://printingmachinecn.com
The WFQ-1000H/1800H high speed slitting machine integrates the function of photoelectric tracking, automatic deviation correction, automatic metering, and automatic material feeding. Both the operation and the maintenance of the automatic slitting machine are quite easy. The high speed slitter can be used for processing diversified paper, film, aluminum foil, and so on.
Technical Parameters of High Speed Slitting Machine| Model | WFQ-1000(H) | WFQ-1800(H) |
| Raw Material | Paper, film, aluminum foil | |
| Material Width | 1300mm | 1800mm |
| Roller Width | 1320mm | 1820mm |
| Max. Diameter of Raw Material | 1000mm | 1500mm |
| Max. Rewinding Diameter | 800mm | 800mm |
| Slitting Speed | 30-120m/min | 30-120m/min |
| Slitting Width | ≥50mm | ≥50mm |
| Slitting Precision | ≤±0.3mm | ≤±0.3mm |
| Inner Dia. of Unwinding and Rewinding Paper Roll | 74mm | 74mm |
