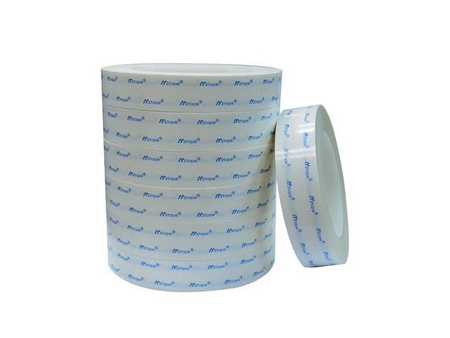

High Temperature Conductive Non-Woven Double-Sided Adhesive Tape, MZ-9703WF

High Temperature Conductive Non-Woven Double-Sided Adhesive Tape, MZ-9703WF
High Temperature Conductive Non-Woven Double-Sided Adhesive Tape, MZ-9703WF
High Temperature Conductive Non-Woven Double-Sided Adhesive Tape, MZ-9703WF
High Temperature Conductive Non-Woven Double-Sided Adhesive Tape, MZ-9703WF
High Temperature Conductive Non-Woven Double-Sided Adhesive Tape, MZ-9703WF
Request a Quote

MZ-9703WF non-woven double-sided adhesive tape is high temperature conductive, which has excellent high temperature resistance characteristics. The double-sided adhesive tape can be used for bonding flexible circuit boards. After the flexible circuit board is bonded and reflowed at high temperature, the viscosity and electrical conductivity maintain the adhesive tape’s characteristics of high viscosity and high retention force.

Product Structure

90g brown double silicon paper
12u acrylic conductive adhesive
10u-conductive non-woven fabric
12u acrylic conductive adhesive

Applications

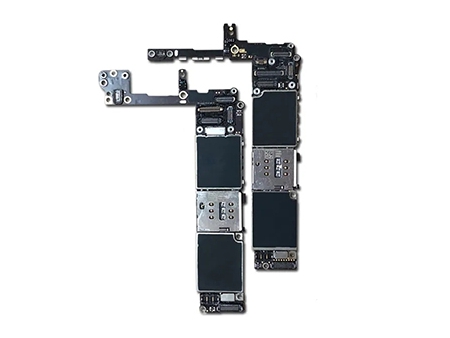

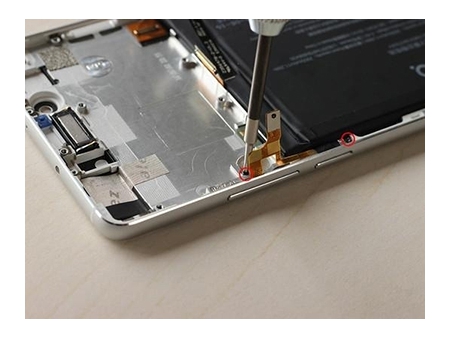

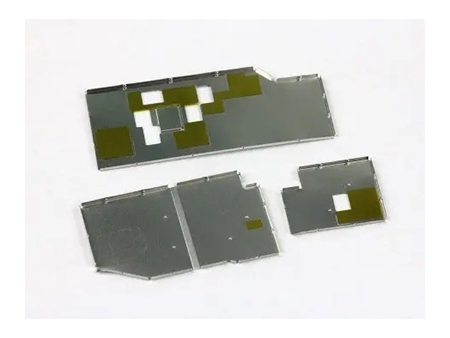

The adhesive tape is suitable for over-high temperature reflow soldering bonding of flexible circuit boards, shielding conduction of metal frames, as well as applications in mobile phone electronic communication products.

Technical Parameter
Property Unit Value Testing method
Substrate thickness mm 0.01±0.002 GB/T 7125-1999
Total thickness mm 0.03±0.005 GB/T 7125-1999
Initial adhesion (inner) Steel ball size# 2-4 GB/T 4852-2002
Initial adhesion (outer) Steel ball size# 2-4 GB/T 4852-2002
180° peel strength (inner) N/25mm 12-16 GB/T 2792-1998
180° peel strength (outer) N/25mm 12-16 GB/T 2792-1998
Adhesion durability H ≥96 GB/T 4851-1998
Heat resistance ℃∕30min -20~300 --
Electrical resistance Ω 0.05 GB/T 4067-1999
Color —— Light grey Visual

Explore More Adhesive Tapes

Mingzhan is a professional adhesive product manufacturer located in Guangdong province, China, providing industrial tapes including conductive tape, EMI shielding tape, heat-resistant tape, flame retardant tape, thermally conductive tape, copper foil tape, aluminum foil tape, PET tape, reusable double-sided tape, etc.
