KT7D/KT7H Integrated DTH Drilling Rig for Open Use

KT7D/KT7H Integrated DTH Drilling Rig for Open Use
KT7D/KT7H Integrated DTH Drilling Rig for Open Use
KT7D/KT7H Integrated DTH Drilling Rig for Open Use
Request a Quote

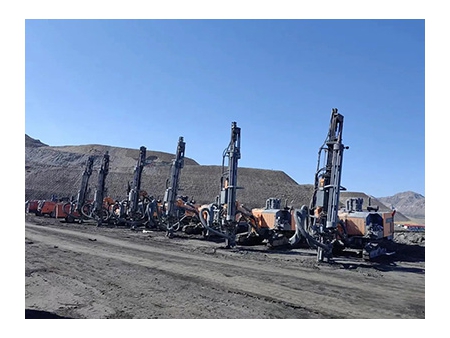

The integrated DTH drilling rig is designed to meet the demands of on-site mining operations. It is a fully automatic rod-handling DTH drilling rig, suitable for borehole diameters of 90-135mm and a drilling depth of up to 24 meters. The rig is equipped with a high-power Yuchai engine, a two-stage 15/18 compressor airend, and a large-section high-strength aluminum alloy guide rail, along with an optimized hydraulic system. It integrates the drilling system and the screw air compression system into a single unit, both driven by a six-cylinder diesel engine. This results in a compact structure and easy mobility. The high-pressure integrated rig features a unique design with a large airflow capacity of 15m³/min and high pressure of 1.8MPa, ensuring sufficient air supply for the drilling hammer.

Key Parameters

Drilling Diameter: Ø90-135mm
Drilling Depth: 24m
Engine: Yuchai YCA07240-T300 (176kW/2200r/min)

Configurations

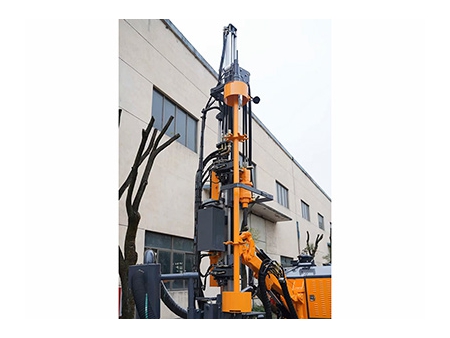

  • Large-section aluminum alloy guide rail with fully automatic rod handling system

    The large-section aluminum alloy guide rail ensures sufficient strength and is paired with a flexible and convenient fully automatic rod handling system and rod storage. This setup improves work efficiency while reducing labor intensity. The rod storage has a capacity of 7 1 rods, supporting a drilling depth of 24 meters.

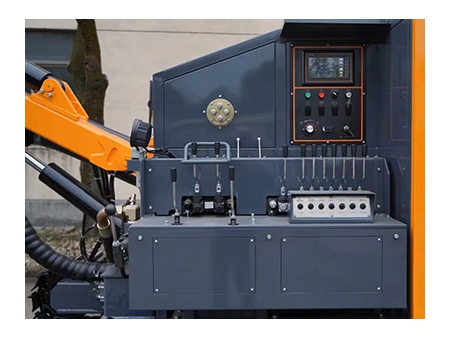

  • Centralized control platform

    The highly centralized control console features a simple and convenient layout, making it easier to intuitively assess the rig's status. All action indicators are clear, and the operation is straightforward.

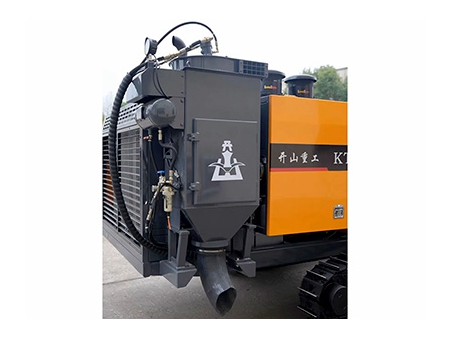

  • High-efficiency dust collection system

    Equipped with a dry, high-efficiency dust collection system to provide a comfortable working environment.

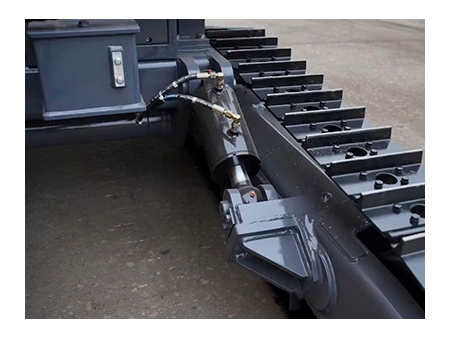

  • Engineering Crawler with Hydraulic Levelling Cylinders

    The engineering crawler is equipped with frame leveling hydraulic cylinders, providing strong climbing ability and suitability for various rugged terrains.

Technical Parameters
Drilling hardness f=6-20
Drilling diameter Ø90-135mm
Economical drilling depth 24m
Travelling speed 0-4km/h
Gradeability ≤25°
Ground clearance 430mm
Diesel engine Yuchai YCA07240-T300 (176kW/2200r/min)
Screw compressor Two stage compression 15m /min/18bar
Dimensions 8000×2300×2700mm
Weight 10000kg
Rotation speed 180rpm
Rotation torque 1560N ·m
Max. feed force 22KN
Lifting angle of drill boom Down 16°, up 48°
Tilt angle of feed beam 147°
Swing angle of feed beam Left 52°, right 53°
Swing angle of drill boom Left 50°, right 58°
Leveling angle ±10°
Feed distance 3590mm
Compensation length of feed beam 900mm
DTH hammer K3/K4
Drill pipe Ø64×3m
Drill pipe storage capacity 7 1 pipes
Drill pipe handling Automatic drill pipe handling
Dust collector 8 filter elements
