KG590/KG590H DTH Drilling Rig for Open Use

KG590/KG590H DTH Drilling Rig for Open Use
KG590/KG590H DTH Drilling Rig for Open Use
KG590/KG590H DTH Drilling Rig for Open Use
KG590/KG590H DTH Drilling Rig for Open Use
Request a Quote

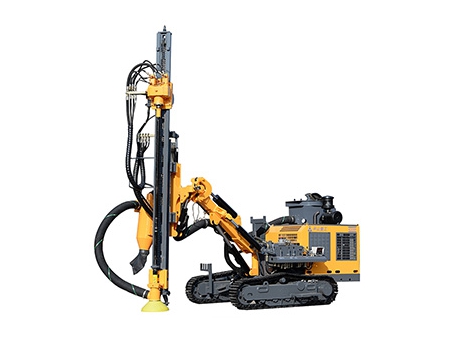

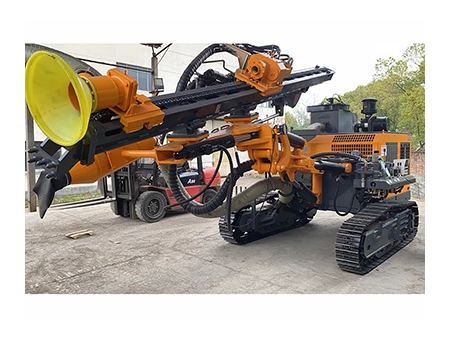

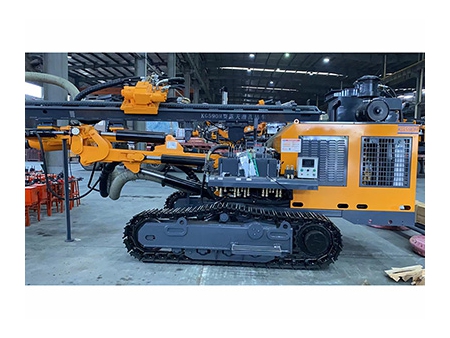

The DTH drilling rig for open use has been upgraded to meet national diesel engine emission standards. It is equipped with a Yuchai four-cylinder National Stage III engine, ensuring compliance with environmental and emission requirements. The rig features a folded crawler frame and engineering-grade four-wheel undercarriage, along with crawler leveling and plunger walking motors, enhancing working pressure and climbing performance. Enlarged pitching and boom lift cylinders ensure reliable operation under extreme positioning requirements, while increased rotary torque and speed improve efficiency. The propulsion motor and chain-driven feed system enhance lifting power and reliability. An upgraded dust collector improves dust removal efficiency, making the rig more environmentally friendly and reliable during operation. The thickened folded profile of the outer shell enhances structural strength and rigidity, while added lifting rings simplify loading and unloading.

Key Parameters

Drilling Diameter: Ø105-152mm
Economical Drilling Depth: 25m
Feed Method: motor and chain
Feed Distance: 4150mm
Engine: Yuchai YC4DK100-T304 (73kW/2200r/min)

Technical Parameters
Model KG590 KG590H
Weight 7000kg 7200kg
Dimensions 7100×2300×2700mm 7100×2500×2700mm
Drilling hardness f=6-20
Drilling diameter Ø105-152mm
Economical drilling depth 25m
Rotation speed 0-100rpm
Rotation torque 5000N·m (max)
Lifting force 25KN
Feed method Motor chain
Feed distance 4150mm
Travelling speed 0-3.5km/h
Gradeability ≤30°
Ground clearance 440mm
Tilt angle of feed beam Down 135°, up 50°, total 185°
Swing angle of feed beam Left 50°, right 50°, total 100°
Pitch angle of drill boom Down 50°, up 25°, total 75°
Swing angle of drill boom Left 45°, right 45°, total 90°
Leveling angle of crawler track ±10°
Compensation length of feed beam 900mm
Engine Yuchai YC4DK100-T304 (73kW/2200r/min)
DTH hammer K40
Drill pipe Ø76×3m/Ø76×3m
Air consumption 15-22m³/min
Max. height of horizontal hole 3500mm
Min. height of horizontal hole 350mm
