KT25 Integrated DTH Drilling Rig for Open Use Manufacturer

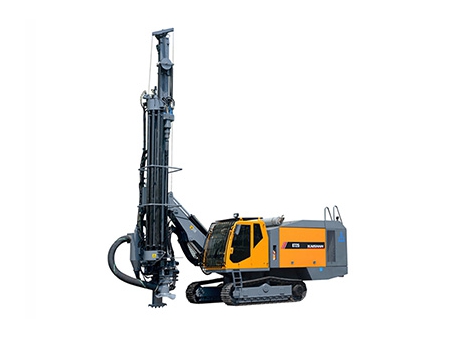

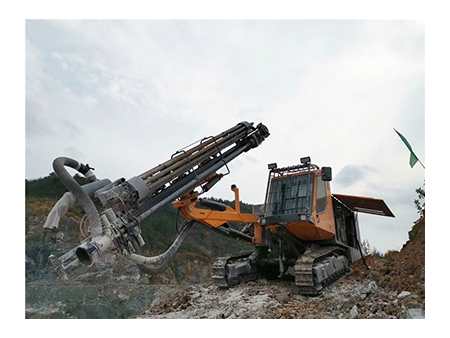

KT25 Integrated DTH Drilling Rig for Open Use

Request a Quote

View All: http://ksdrillrig.com/3-16-kt25-integrated-dth-drilling-rig-for-open-use.html

This integrated DTH drilling rig is capable of drilling vertical, inclined, and horizontal holes, primarily used for drilling blasting holes and pre-splitting holes in large open-pit mines and rock engineering projects. Powered by a Caterpillar diesel engine, it drives both the screw compression system and hydraulic transmission system through dual output. The rig is equipped with an automatic rod handling system, a floating drill rod joint module, a drill rod lubrication module, an anti-jamming system, a hydraulic dry dust collection system, a climate-controlled cabin, and a drill angle and depth indicator

Key Parameters

Drilling Diameter: Ø152-203mm
Drilling Depth: 35m (automatic drill pipe handling)
Power: 328kW
Engine: Caterpillar C13

Technical Parameters

Drilling hardness	f=6-20
Drilling diameter	152-203mm
Economical drilling depth (automatic drill pipe handling)	35m
Travelling speed	3.0km/h
Gradeability	25º
Ground clearance	430mm
Power	328kW
Diesel engine	Caterpillar C13
Displacement of screw compressor	26m³/min
Discharge pressure of screw compressor	25bar
Dimensions (L×W×H)	12200×2840×3620mm
Weight	25800kg
Rotation speed	0-118r/min
Rotation torque	6100N*m
Max. feed force	65KN
Tilt angle of feed beam	125º
Swing angle of feed beam	Right 37°, left 37°
Swing angle of drill boom	Right 42°, left 15°
Leveling angle	Up 10°, down 10°
Compensation length	1800mm
DTH hammer	K5/K6
Drill pipe (diameter×length)	Ø102×5000mm
Dust collector	Dry (hydraulic dust collector) / wet (optional)
Drill pipe handling	Automatic drill pipe handling
Automatic anti-jamming	Electro-hydraulic control
Drilling rod lubrication	Automatic oil injection and lubrication
Drill pipe thread protection	Equipped with floating joint
Drilling display	Real-time display of drilling angle and depth
