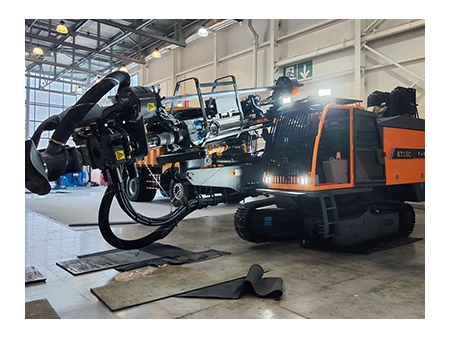

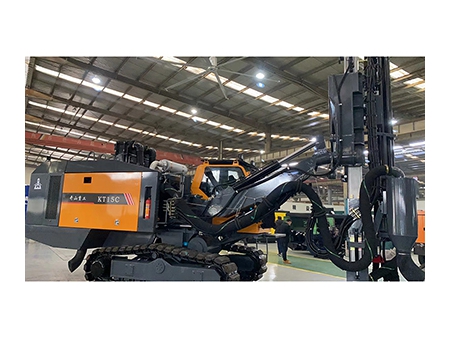

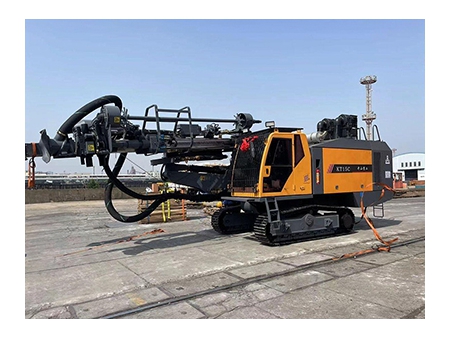

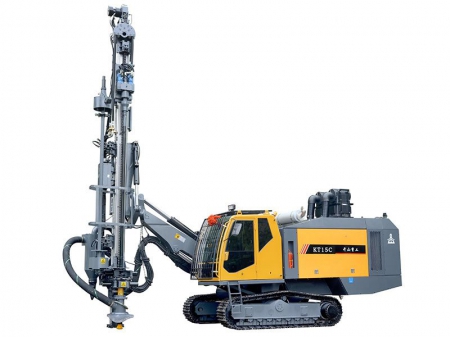

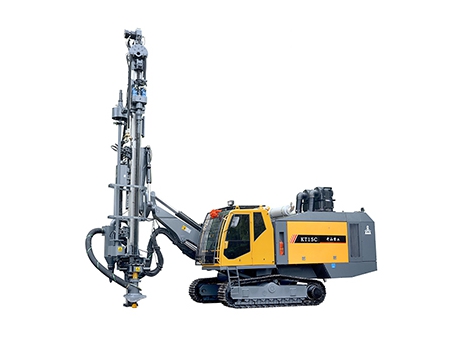

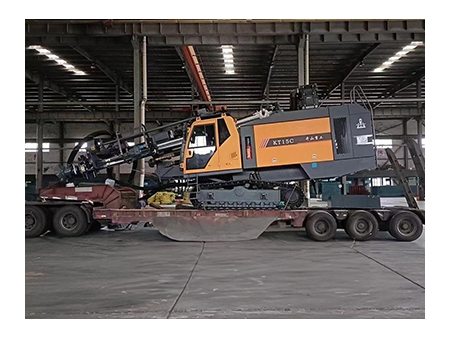

KT15C Integrated Down the Hole Drill Rig
KT15C integrated down-the-hole drill rig is capable of drilling vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-splitting holes. It is driven by the Cummins diesel engine (China stage III) and the two-terminal output can drive the screw compression system and hydraulic transmission system. The drill rig is equipped with high strength aluminum alloy propulsion beam, variable hydraulic system, automatic rod handling system, drill pipe floating joint module, drill pipe lubrication module, drill pipe sticking prevention system, hydraulic dry dust collection system, air conditioning cab, optional drilling angle and depth indication function, etc. The drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety, etc.
Technical Parameters| Drilling hardness | f=6-20 |
| Drilling diameter | 140-190 mm |
| Depth of economical drilling (depth of automatic extension rod) | 36 m |
| Travelling speed | 3.0 km/h |
| Climbing capacity | 25° |
| Traction | 140 kN |
| Ground clearance | 430 mm |
| Total power | 298 kW |
| Diesel engine | Cummins QSZ13-C400 |
| Displacement of screw compressor | 22 m³/min |
| Discharge pressure of screw compressor | 24 bar |
| Dimensions (L×W×H) | 11000×2780 ×3600 mm |
| Weight | 23800 kg |
| Rotation speed of gyrator | 0-100 r/min |
| Rotary torque | 4100 N*m |
| Max. feed force | 65000 N |
| Propulsion method | Roller chain |
| Tilt angle of beam | 125° |
| Swing angle of carriage | Right 97°, left 33° |

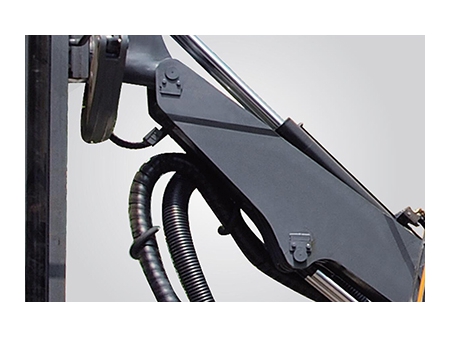

| Swing angle of drill boom | Right 45°, left 15° |
| Leveling angle of frame | Up 10°, down 10° |
| Compensation length | 1500 mm |
| Feed stroke | 4580 mm |
| DTH hammer | K4, K5, K6 |
| Drilling rod (diameter × length) | Ø89/Ø102×4000 mm |
| Number of rods | 8 1 |

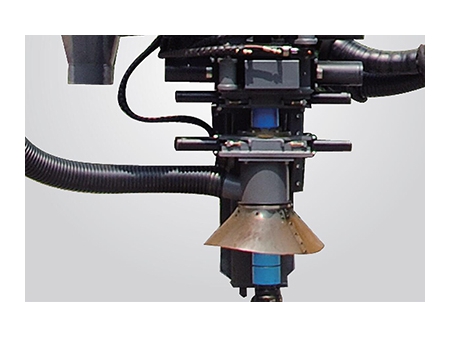

| Dust removal method | Dry (hydraulic cyclonic laminar flow)/wet (optional) |
| Rod extension method | Automatic unloading rod |
| Automatic anti-jamming method | Electro-hydraulic control anti-sticking |
| Drilling rod lubrication method | Automatic oil injection and lubrication |
| Protection of drilling rod thread | Equipped with the floating joint to protect the thread of drilling rod |
| Drilling display | Real-time display of drilling angle and depth |

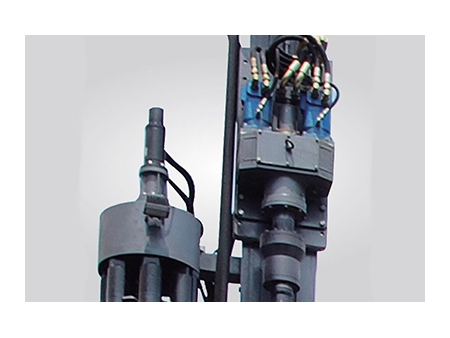

- High torque gyrator

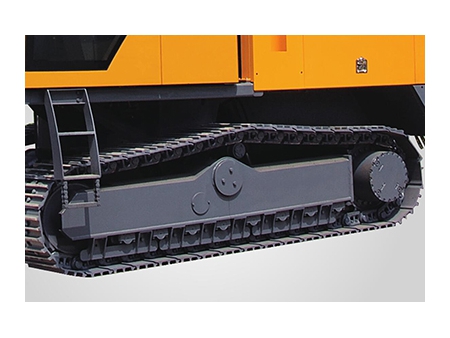

- High quality walking track
- Hydraulic system
- Automatic rod handling system
