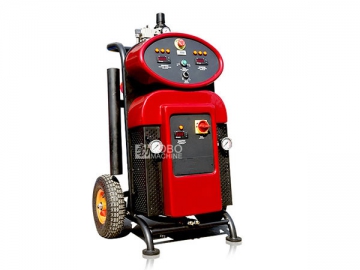

Polyurethane Spray Foam Machine BDF-IV
Request a Quote
View All: http://foam-spraying.com
With same features as BDF-II polyurethane spray foam machine, the BDF-IV is used for wall and roof thermal insulation, sound insulation foam spraying, it also can be used for foam pouring of cold room panel, freezer panel, and the solar water heater tank, etc. Compared with the basic model of BDF-II, the BDF-IV is more powerful with strong heating system, and the maximum length of heating hose reaches 90m. Also we will supply the necessary spare parts for the foam spraying machine and the spray gun is free of charge at least one year of use.
Main Technical Data
| No. | Description | Data |
| 1 | Flux capacity | 4-10Kg/min |
| 2 | Max. material temperature | 80 centigrade |
| 3 | Mixing pressure | 5-10MPa |
| 4 | Heating capacity | 9.5KW |
| 5 | Max. heating hose length | 90meter |
| 6 | Driving method | Pneumatic driven with air compressor |
| 7 | Electric power system | 380V, 50/60Hz, 3Phase (can be customized) |
| 8 | Package dimension | 800x700x1250mm |
| 9 | Gross weight | 157Kg |
