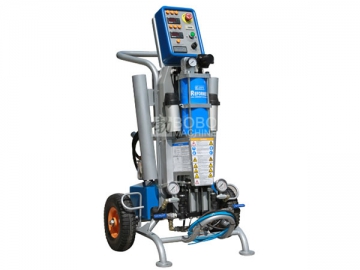

Pneumatic Polyurea Spray Machine BDF-X
Request a Quote
View All: http://foam-spraying.com
This newest pneumatic polyurea spray machine BDF-X can be applied to various of construction situations, and it is suitable for multiple double component materials, such as polyurea elastomer, polyurethane all-water foam, polyurethane foam material, polyurethane adhesive and sealants. Compared with the model of BDF-V, this ultrahigh pressure foam spraying machine is more compact with better cost performance.
Main Technical Data
| Model | |
| Max. flow capacity | 2-8kg/min |
| Viscosity range | 200-1000CPS |
| Mixing ratio | 1:1, fixed ratio |
| Heating power | 4500W*2 |
| Heating temperature range | 0 ℃ ~ 90 ℃ |
| Power source | 3-phase, 4-wires |
| Air source | 120psi 1.2m3/min |
| Output pressure | 9-18Mpa |
| Dimension | 930x800x1210mm |
| Weight | 125KG |
| Standard configuration | Main machine, one set Feeding pump, two pieces Spray gun, one piece Gun connection hose 2m, one set Heating hose 15m, one set |
