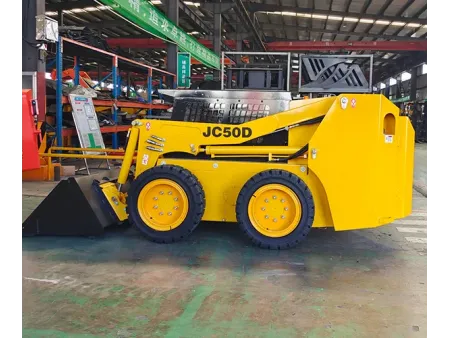

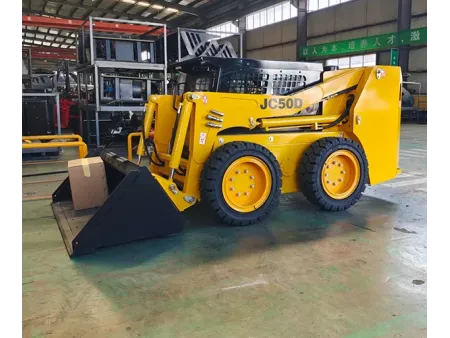

JC50D Skid Steer Loader
Request a Quote
Wheeled skid steer with rated operating capacity of 700kg for medium-sized construction and truck loading tasks
- Operating weight
2800kg - Rated load
850kg - Bucket capacity
0.4m³ - Max. speed
6km/h
- Strong load capacity: Rated operating load of 850 kg with a maximum traction force of ≥25.4 kN, ensuring stable performance during heavy-duty operations.
- Efficient material handling: Equipped with a 0.4 m³ bucket and a maximum breakout force of ≥18.4 kN, suitable for various loading and material transport tasks.
- Versatile attachment compatibility: Standard quick coupler supports multiple tools such as hydraulic breakers, sweepers, grapples, and snow plows, offering flexibility for different working scenarios.
Specifications
| Model | JC50D |
| Operating weight | 2800kg |
| Rated load | 850kg |
| Bucket capacity | 0.4m³ |
| Max. speed | 6km/h |
| Max. traction | ≥25.40kN |
| Max. breakout | ≥18.4kN |
| Lifting time of boom | 7s |
Engine
| Manufacturer | Xinchai |
| Model | A498BPG |
| Rated power | 45kW/2500rpm |
| Engine displacement | 3.17L |
| Emission standard | China II |
Dimensions
| A | Overall operating height | 3485mm |
| B | Height to bucket hinge pin | 2465mm |
| C | Height to top of cab | 1400-1600mm |
| D | Height to bottom of level bucket | 2643mm |
| E | Overall length without bucket | 2800mm |
| F | Overall length with bucket | 3490mm |
| G | Dumping angle at maximum height | 40° |
| H | Dumping height | 1700mm |
| I | Dumping reach | 700mm |
| J | Rollback of bucket on ground | 30° |
| K | Rollback of bucket at full height | 104° |
| L | Wheelbase | 995mm |
| M | Ground clearance | 140mm |
| N | Angle of departure | 13° |
| O | Front turning radius without bucket | 1228mm |
| P | Front tuning radius | 2010mm |
| Q | Rear tuning radius | 1746mm |
| R | Rear axle to bumper | 1208mm |
| S | Track width | 1450mm |
| T | Width | 1740mm |
| U | Bucket width | 1740mm |
