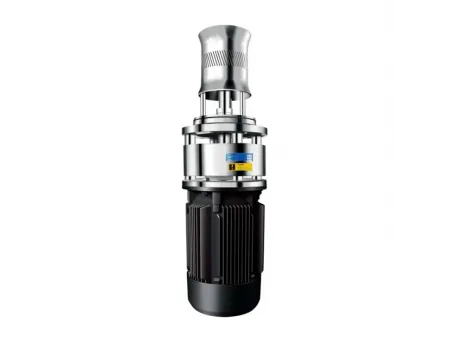

FJE/FJEX Series Bottom Entry Dispersing Mixer
Request a Quote
Dispersion mixer for dispersing and mixing in large tanks
These bottom and side-mounted dispersing mixers are typically used in large tanks, effectively controlling energy consumption within reasonable limits. This installation method is highly versatile, functioning efficiently regardless of container shape, making it ideal for larger scale mixing applications.
Features
This bottom entry dispersing mixer excels at handling low liquid levels with ease, ensuring thorough and efficient mixing even in challenging conditions.
Specifications
| Model | Rated power (kW) | Max. speed (rpm) | Max. processing capacity (L), H₂O |
| 1.5 | 3000 | 70 | |
| 2.2 | 3000 | 150 | |
| 4 | 3000 | 400 | |
| 7.5 | 3000 | 1000 | |
| 11 | 1500 | 1400 | |
| 18.5 | 1500 | 1800 | |
| 22 | 1500 | 2500 | |
| 30 | 1500 | 3500 | |
| 37 | 1500 | 6000 | |
| 55 | 1500 | 10000 |
