Heat Shrink Cable Entry Seal / Cable Feedthrough
Request a Quote

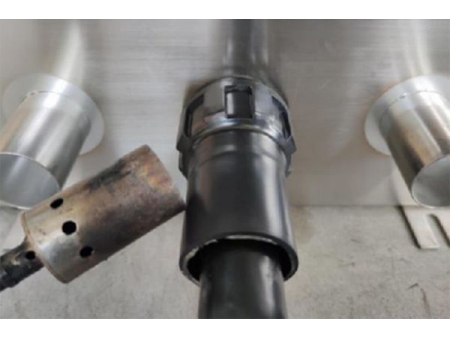

This heat shrink cable feedthrough, or cable entry seal, protects and seals cables when they pass through connection boxes, bulkheads or other enclosures. Damages caused by the friction between the cables and a wall will also be avoided. This cable entry seal is made of flame-retardant polyolefin that is light and non-toxic. It also features brilliant dielectric properties, excellent insulation performance and outstanding resistance to chemical corrosion. The heat shrink feedthrough has adhesive lining that helps make a safe and watertight bond with the cables.
Download
Technical Data
| Property | Test Method | Standard Value |
| Tensile Strength | ASTM | ≥ 10MPa |
| Elongation at Break | ASTM | ≥300% |
| Tensile Strength After Heat Aging (130℃×168h) | ASTM | ≤±20% |
| Elongation at Break After Heat Aging (130℃×168h) | ASTM | ≤±20% |
| Water Absorption | ISO 62 | ≤0.1 % |
| Dielectric Strength | IEC 60243 | ≥20kV (mm) |
| Volume Resistivity | IEC 60093 | ≥1x Ω.cm |
