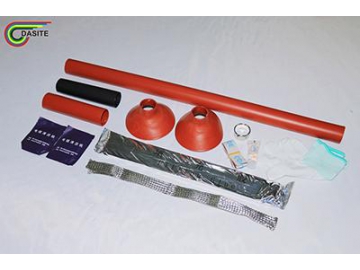

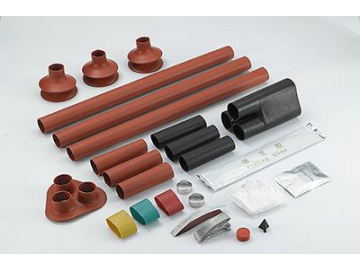

Single Core to Three Core Heat Shrink Cable Terminations up to 15kV
Request a Quote
10kV heat shrinkable cable terminals are made primarily of EPDM (which is a radiated cross-linking polyolefin), and feature an outstanding ozone resistance and heat resistance, and are known for their durability that allows the cable terminations to withstand harsh environments. The inner hot melt adhesive ensures a high quality sealing performance.
This particular series is ideal for outdoor use, and are used for insulation protection in cables with a voltage range of 6-15kV.
Optional type
1-core indoor heat shrinkable terminal| Type and specification | Cross sectional area of applicable cable (mm2) |
| NSY-10 /1.1 | 25-50 |
| NSY -10 /1.2 | 70-120 |
| NSY -10 /1.3 | 150-240 |
| NSY -10 /1.4 | 300-500 |
| Type and specification | Cross sectional area of applicable cable (mm2) |
| WSY -10 /1.1 | 25-50 |
| WSY -10 /1.2 | 70-120 |
| WSY -10/1.3 | 150-240 |
| WSY -10/1.4 | 300-500 |
| Type and specification | Cross sectional area of applicable cable (mm2) |
| NSY-10/3.1 | 25-50 |
| NSY -10/3.2 | 70-120 |
| NSY -10/3.3 | 150-240 |
| NSY -10/3.4 | 300-500 |
| Type and specification | Cross sectional area of applicable cable (mm2) |
| WSY -10/3.1 | 25-50 |
| WSY -10/3.2 | 70-120 |
| WSY -10/3.3 | 150-240 |
| WSY -10/3.4 | 150-240 |
| Item | Test condition |
| West state power frequency withstand voltage test(external) | 35kv, 1min |
| Dry power frequency withstand voltage test(inside) | 39kv, 5min |
| Impact withstand voltage test | 95kv1.2/50us 10 times |
| Partial discharge test | ≤10pc(1.73u) |
