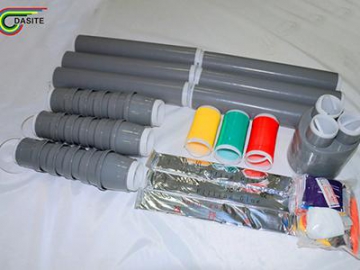

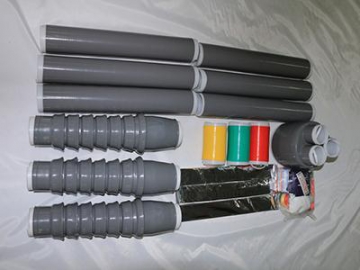

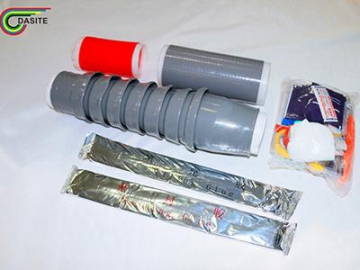

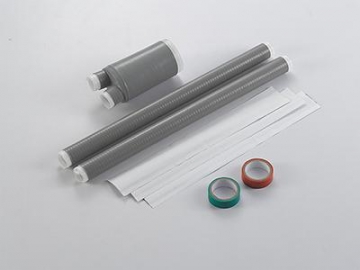

Cold Shrink Cable Terminations Single Core to Three Core up to 24kV

The 20kV Cold shrinkable cable terminal is continuously extruded from silicone rubber material, and features outstanding electrical properties. It is applicable for a variety of power cables with a voltage range of 12 kV to 24kV.

Optional type

1-core indoor cold shrinking terminal

Type and specification	Cross sectional area of applicable cable (mm²)
NLS-20/1.1	35-70
NLS -20/1.2	95-150
NLS -20/1.3	185-300
NLS -20/1.4	400-630

1-core outdoor cold shrinking terminal

Type and specification	Cross sectional area of applicable cable (mm²)
WlS-20/1.1	35-70
WlS -20/1.2	95-150
WlS -20/1.3	185-300
WlS -20/1.4	400-630

3-core indoor cold shrinking terminal

Type and specification	Cross sectional area of applicable cable (mm²)
NLS-10/3.1	25-50
NLS -10/3.2	70-120
NLS -10/3.3	150-240
NLS -10/3.4	300-400

3-core outdoor cold shrinking terminal

Type and specification	Cross sectional area of applicable cable (mm²)
WLS-10/3.1	25-50
WLS -10/3.2	70-120
WLS -10/3.3	150-240
WLS -10/3.4	300-400

Technology index

Item	Test condition
West state power frequency withstand voltage test(external)	72kv,1min
Dry power frequency voltage withstand test(inside)	51kv,5min
Impact withstand voltage test	125kv1.2/50us 10 times
Partial discharge test	≤10pc(1.73U)
