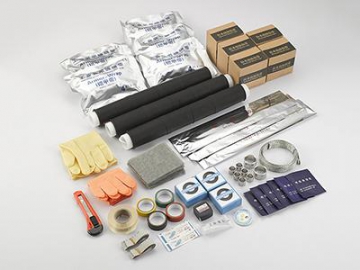

Single Core to Three Core Cold Shrink Cable Joint up to 15kV
Request a Quote
10kV cold shrink cable joints are made of silicone rubber, and will automatically shrink with no need for heat. It is fast and easy to use without any special equipment, and because silicone rubber has an excellent elasticity, these cable joints feature a wide application range. We offer single core and 3 core 10kV cable joints, which ensures these are applicable to a full range of cables with a voltage of 6-15kV.
1-core cold shrinking intermediate joint| Type and specification | Cross sectional area of applicable cable (mm2) |
| JLS-10/1.1 | 25 - 50 |
| JLS-10/1.2 | 70-120 |
| JLS-10/1.3 | 150-240 |
| JLS-10/1.4 | 300-400 |
| Type and specification | Cross sectional area of applicable cable (mm2) |
| JLS-10/3.1 | 25-50 |
| JLS-10/3.2 | 70-120 |
| JLS-10/3.3 | 150-240 |
| JLS-10/3.4 | 300-400 |
Property test chart
| Item | Parameter |
| West state power frequency withstand voltage test(external) | 35kv1min |
| Dry power frequency voltage withstand test(inside) | 39kv5min |
| Impact withstand voltage test | 95kv1.2/50us 10 times |
| Partial discharge test | ≤10pc(1.73U) |
