UV curing system for drying UV paint on flat surfaces

The coating dryer with duel UV lighting lamps is used to dry flat panels coated in a UV coating. This equipment can be directly connected to a coating machine in order to achieve instant drying of finished products. This eliminates waiting time and handling issues, thereby increasing the coating production speed. Workpieces dried using UV lights also feature a higher surface hardness and brighter colors.

Applications

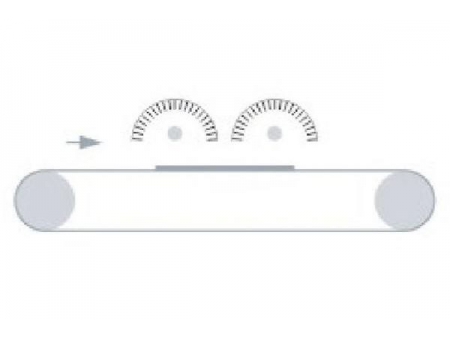

Working principle

The UV paint coated product is transferred with the use of a conveyor belt, and passes through a dryer light box equipped with UV lamps, where the UV paint will chemically react to the light, and cross link to form a film. By doing so, the product surface becomes dry.

Specifications
Effective processing thickness 2-80mm
Effective processing width 620/920/1320mm(optional)
Minimum processing length 300mm
Transfer speed 0-20m/min
Transport power 0.75kW
Power supply 380V/50Hz
Paint type UV
Details
  • The irradiation density of the UV lamps is adjustable and equipped with a high-strength capacitor and transformer, both of which enhance the UV lamp stability.
  • The reflector panel on the lamps' outer cover allows for the UV light reflectivity to reach 99%, thus reducing energy consumption.
  • The light box inlet and outlet are equipped with light screens in order to effectively prevent UV light leaks.
  • The light box is equipped with an air-cooling system and a temperature controller to precisely control its internal temperature, thereby extending the lamp service life.
  • Depending on the type, the panels can be transported using a chain, stainless steel, or roller conveyor.
Optional models
Model Effective processing width (mm) Lamp power (kw) Fan power (kw) Outline size (LWH)
SR-U2620 620 5.6*2 0.55*2 2100x1700x1500
SR-U2920 920 8.0*2 0.75*2 2100x2000x1500
SR-U21320 1320 9.6*2 0.75*2 2100x2400x1500
