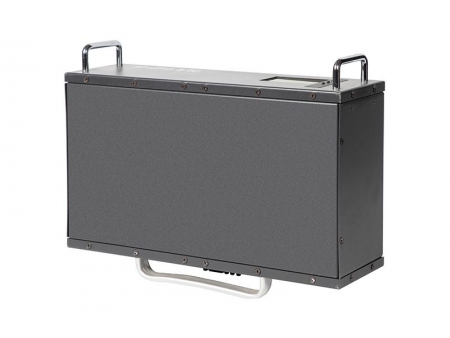

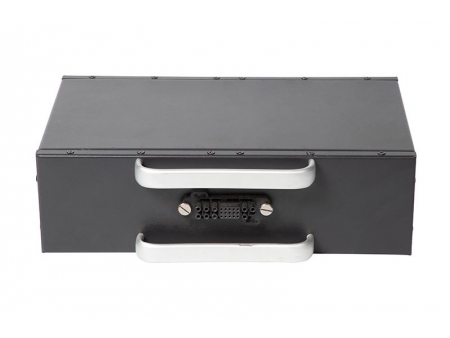

Lithium Iron Phosphate Battery (LiFePO4 Battery)

Lithium Iron Phosphate Battery (LiFePO4 Battery)
Lithium Iron Phosphate Battery (LiFePO4 Battery)
Lithium Iron Phosphate Battery (LiFePO4 Battery)
Request a Quote

Powering an array of consumer technologies, the lithium iron phosphate battery (LiFePO4 battery) is designed to be as safe as possible. It provides protection against short circuits, overcharging, overdischarging, overcurrents and high temperatures, making it ideal for use in street lamps, monitoring systems, UPS and off-grid systems.

Features
  • The efficiency of charge and discharge is extremely high, with an efficiency level of 90% or higher when in the discharge state.
  • Superior safety standards.
  • The lithium iron phosphate battery boasts a significantly longer cycle life than that of other batteries, with the ability to withstand 5000 charges or more. Under standard charging conditions of five hours, the battery's life is extended to up to 3000 cycles.
  • Superior temperature performance.
  • The capacity of the lithium iron phosphate battery is exceptionally high.
  • No memory effect
  • Powerful and lightweight.
Technical Parameters of LiFePO4 Battery
Nominal voltage 12.8V 12.8V 12.8V 12.8V 12.8V 12.8V
Nominal capacity 12V20AH 12V30AH 12V40AH 12V45AH 12V50AH 12V60AH
Charge voltage 14.6V 14.6V 14.6V 14.6V 14.6V 14.6V
Max. charge current 10A-30A (optional) 10A-50A (optional)
Peak discharge current 10A-30A (optional) 10A-50A (optional)
Discharge cut-off voltage 10V 10V 10V 10V 10V 10V
Internal resistance ≤100mΩ ≤ 100mΩ ≤ 100mΩ ≤ 100mΩ ≤ 100mΩ ≤ 100mΩ
Weight 2.5KG 4.5KG 4.5KG 6.5KG 7.5KG 8.5KG
Dimensions (mm) (without controller) 153*98*150 153*98*270 153*98*270 153*98*380 153*98*400 153*98*520
Charge temperature -0~45℃ (heating plate is optional)
Discharge temperature -40~50℃
Storage temperature -20~40℃
Protection functions Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection
Applications Street light, monitoring system, UPS, off-grid power system

Technical Parameters of LiFePO4 Battery Pack (50AH)

Nominal voltage 51.2V
Nominal capacity 50AH
Charge voltage 58.4V
Charge current 50A
Peak discharge current 80A
Discharge cut-off voltage 40V
Weight 30KG
Dimensions 245*200*800mm
Charge temperature 0 ~ 55℃
Discharge temperature -20 ~ 60℃
Storage temperature -20 ~ 40℃
Protection functions Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection

Technical Parameters of LiFePO4 Battery Pack (100AH)

Nominal voltage 51.2V
Nominal capacity 100AH
Charge voltage 59.2V
Charge current 50A
Peak discharge current 50A
Discharge cut-off voltage 40V
Weight 40kg
Dimensions 540-400-150mm
Charge temperature 0 ~ 45℃
Discharge temperature -40 ~ 50℃
Storage temperature -20 ~ 40℃
Protection functions Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection
