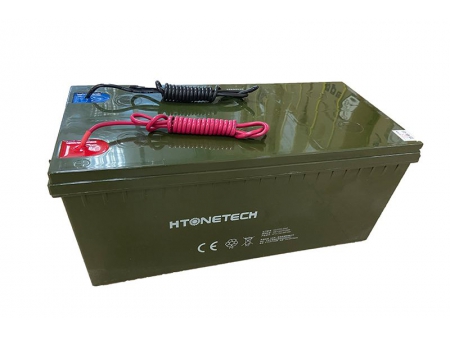

Gel Battery & Lead Acid Battery
The high density gel storage battery is a reliable choice for a variety of applications, due to its long service life, wide use temperature range, strong low temperature efficiency, high sealing rate, and minimal self-discharge. It can be utilized in solar (wind) residential systems, off-grid power stations, solar (wind) communication networks, communication base stations, solar (wind) street lamps, mobile energy storage systems, solar-powered traffic lights, and solar building systems, as well as in other emerging new energy fields.
Our battery products are divided into two series: lead-acid and gel batteries. The gel batteries are especially renowned for their high and low temperature resistance, superb over-discharge recovery ability and extended cycle life.
- Our patented structure makes connection more straightforward and facilitates buried installation, protecting the pole from corrosion.
- By utilizing a special alloy and lead paste formula, our battery has a low self-discharge rate, is highly resistant to deep discharges, and also offers superior capacity recovery performance.
- Our battery has been designed with advanced processes and imported low-resistance raw materials, allowing for efficient charging with low internal resistance and strong acceptance of lower current levels.
- Wide temperature range of -25°C to 50°C for lead acid and -35°C to 60°C for gel make these batteries suitable for use in both indoor and outdoor applications across a variety of climates.
- Independently developed nano colloidal electrolytes based on patented multi element rare earth alloys, and nano grade fumed silica originating from Germany. The battery design lifespan is more than 15 years for lead-acid and 18 years for colloids.
- The battery formula does not contain polluting substances and is not difficult to recycle, coupled with a leak-proof gel electrolyte, making it safe for the environment and delivering strong green protection.
| Model | Rated voltage (V) | Rated capacity (Ah/10Hr) | Dimensions (mm.±3%) | |||
| Length | Width | Height | Total height | |||
CN(J)-200 | 2 | 200 | 171 | 106 | 330 | 342 |
CN(J)-300 | 2 | 300 | 171 | 151 | 330 | 342 |
CN(J)-400 | 2 | 400 | 196 | 171 | 330 | 342 |
CN(J)- 500 | 2 | 500 | 241 | 171 | 330 | 342 |
CN(J)-600 | 2 | 600 | 285 | 171 | 330 | 342 |
CN(J)-800 | 2 | 800 | M3 | 171 | 330 | 342 |
CN(J)-1000 | 2 | 1000 | 471 | 171 | 330 | 342 |
CN(J)-1200 | 2 | 1200 | 510 | 175 | 337 | 347 |
CN(J)-1500 | 2 | 1500 | 318 | 341 | 341 | 351 |
CN(J)-2000 | 2 | 2000 | 433 | 342 | 341 | 351 |
CN(J)-2500 | 2 | 2500 | 629 | 346 | 341 | 351 |
CN(J)-3000 | 2 | 3000 | 629 | 346 | 341 | 351 |
6-CN(J)-8 | 12 | 8 | 151 | 65 | 95 | 99 |
6-CN(J)-12 | 12 | 12 | 151 | 100 | 97.5 | 102 |
6-CN(J)-14 | 12 | 14 | 151 | 100 | 97.5 | 102 |
6-CN(J)-20 | 12 | 20 | 181 | 77 | 170 | 175 |
6-CN(J)-24 | 12 | 24 | 165 | 126 | 175 | 181 |
6-CN(J)-30 | 12 | 30 | 196 | 165 | 174 | 181 |
6-CN(J)-40 | 12 | 40 | 196 | 165 | 174 | 181 |
6-CN(J)-50 | 12 | 50 | 229 | 138 | 210 | 230 |
6-CN(J)-60 | 12 | 60 | 350 | 166 | 174 | 174 |
6-CN(J)-65 | 12 | 65 | 350 | 166 | 174 | 174 |
6-CN(J)-70 | 12 | 70 | 350 | 166 | 174 | 174 |
6-CN(J)-80 | 12 | 80 | 329 | 172 | 214 | 236 |
6-CN(J)-90 | 12 | 90 | 329 | 172 | 214 | 236 |
6-CN(J)-100 | 12 | 100 | 329 | 172 | 214 | 236 |
6-CN(J)-110 | 12 | 110 | 406 | 174 | 208 | 232 |
6-CN(J)-120 | 12 | 120 | 406 | 174 | 208 | 232 |
6-CN(J)-150 | 12 | 150 | 483 | 170 | 240 | 240 |
6-CN(J)-180 | 12 | 180 | 522 | 240 | 219 | 244 |
6-CN(J)-200 | 12 | 200 | 522 | 240 | 219 | 244 |
6-CN(J)-220 | 12 | 220 | 522 | 240 | 219 | 244 |
6-CN(J)-250 | 12 | 250 | 520 | 269 | 220 | 245 |
