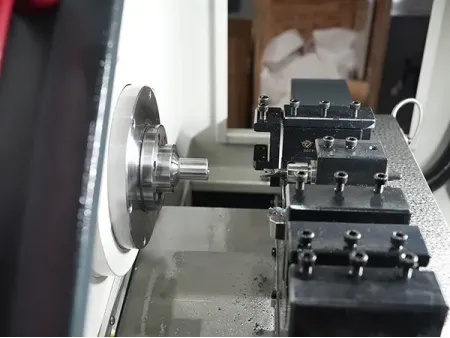

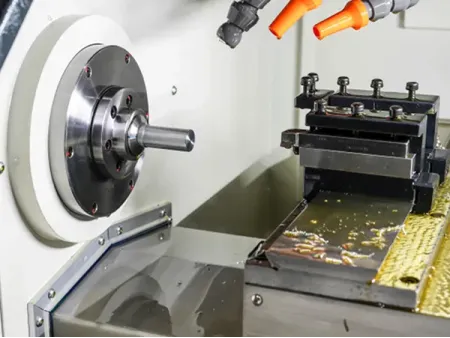

Gang Tool Type CNC Lathe
Request a Quote
CMK0220/1 & CMK0232/1
Compact CNC turning machine with gang tooling for precision machining of bars with a maximum diameter of 20mm
Features
- The gang too type CNC lathe base is made from a high-strength one-piece casting that provides excellent rigidity and vibration resistance.
- Its hand-scraped dovetail structure is made from wear-resistant cast iron, offering strong stiffness and stable support.
- A high-precision built-in motor spindle delivers high spindle speeds, while linear axes with 15 m/min rapid traverse reduce idle time.
- Capable of heavy cutting and hard turning with stable accuracy.
Sample Display
Sleeve bearing components
Technical Specifications
| Model | | |
| CNC system | Syntec 22TB (optional FANUC) | |
| Max. bar diameter (mm) | Ø20 | Ø32 |
| Max. bar diameter | 100 | |
| Max. Workpiece Diameter length (mm) | 100 | |
| Spindle through-hole diameter | Ø21 | Ø33 |
| Spindle motor power (kW) | 4.4 | 3.7/5.5 |
| Max. spindle speed (r/min) | 8000 | 6000 |
| Repeatability of all axes (mm) | 0.002 | |
| Radial runout of push-guide locating hole (mm) | 0.002 | |
| Rapid traverse (m/min) | 15 | |
| Machine weight (kg) | Approx. 1000 | Approx. 2000 |
| Overall dimensions (L×W×H) (mm) | 1100×1200×1500 | 1500×1600×1700 |
