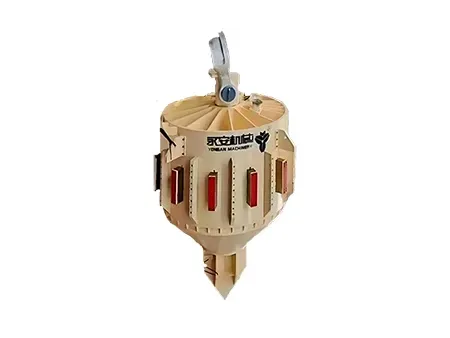

Internal Lifting Tool

FZQ-600i

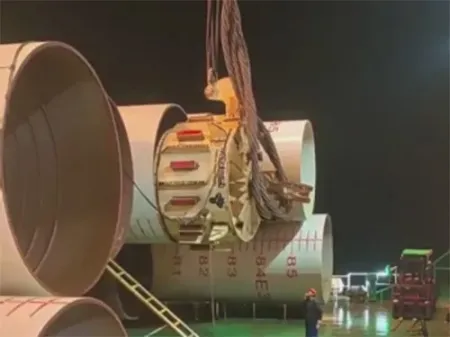

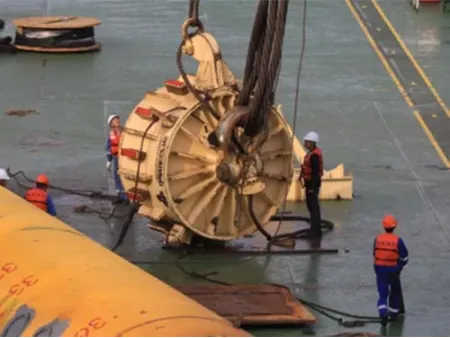

Pile upending tool for handling large diameter piles in offshore construction

Introducing our internal lifting tools (FZQ-600i series), high-efficiency engineering equipment designed specifically for pile handling. Featuring an internal expansion design, these tools efficiently grip and upend various sizes of tubular piles. With a vertical lifting load of 600 t and a horizontal capacity of 1200 t, along with 120 t of maxi. Listing capacity at auxiliary lift point, these hydraulic-powered tools ensure precise, stable, and safe operation. Customization is available to meet your specific needs.

Model	FZQ-600i
Maximum Lifting Load	Vertical load: 600 ton Horizontal load: 300 ton Max. lifting capacity at auxiliary lift point: 120 ton (upending tool included)
Maximum Clamping Force	3000-9000 kN
Maximum Working Pressure	250 bar
Clamp Scope	2.8-3.3 m
Weight	26.8 ton

Applications

Widely used in building, bridge, and foundation engineering projects, providing flexible and reliable pile handling solutions.

Suitable Pile Types

Versatile and suitable for various pile types and materials, including steel tubular piles and concrete piles.

Customizable Options

Customization of our internal lifting tools is available for customer requirements, with adjustable clamp scope and maximum lifting load based on pile type and weight.

Related Case Studies

Yuedian Group's Project 1&2 in Qingzhou, Yangjiang

Diameter: 2.8 m
Thickness: 50 mm
Pile length: 87.5 m
Weight: 260-300 t
Application: offshore wind farm

Mingyang Electric’s Section I of Project 4 in Qingzhou, Yangjiang

Application: offshore wind farm
