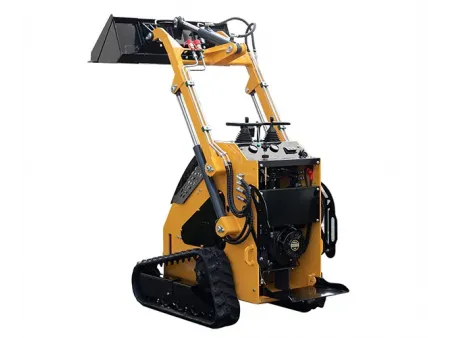

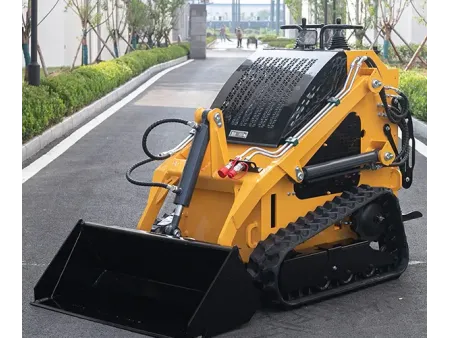

T360 Mini Skid Steer Loader

Request a Quote

Website: http://sutemachinery-en.com/3-3-1-mini-skid-steer-loader.html

Specifications

Certification	ISO, CE, EPA, EURO5
Engine brand	Electric/Koop/Runtong/Zhongzheng/B&S
Rated power	6kW (72V, 125Ah)/7.5kW/8.6kW/8.5kW/9.9kW
Number of cylinders	1
Air intake way	Naturally aspirated
Emission standard	EURO5/EPA
Rated operating capacity	200kg
Max. operating capacity	300kg
Max. breakout force	3.5kN
Bucket capacity	0.12m³
Driving speed	0-6km/h
Total cycle time	9s
System operating pressure	17-21bar
Fuel tank capacity	5L
Operating weight	900kg
Track size (L×W×T)	180×72×35mm
Vehicle height	1300mm
Length with standard bucket	2070mm
Vehicle width	920mm
Length without standard bucket	1640mm
Bucket width	1050mm
Tail length	500mm
Height at maximum extension	2400mm
Height to the bucket pin	1870mm
Max. height as lay the bucket flat	1720mm
Dumping height	1510mm
Discharge distance	250mm
Track contact with ground length	900mm
Ground clearance	130mm
Bucket flip angle on the ground	27°
Bucket flip angle at highest position	114°

Features

Multiple power options: Available with Koop 192, Runtong, or Briggs & Stratton engines, as well as an electric motor option, offering flexibility for various work conditions
Centralized control system
Hydraulic system
Durable hydraulic hoses and elastic rubber components
LED lighting system
Quick-change attachment interface that allows fast replacement of various tools for different applications
