1500W Motor Controller (BLDC Square Wave) KTF03018A-C3
Request a Quote
View All: http://motors-manufacturer.com/3-3-1500w-motor-controller-bldc-square-wave-ktf03018a-c3.html
Your Motion
Main Functions
Speed control, forward, backward, neutral, high level brake, low level brake, speed limit, speed meter, anti-theft etc.
Technical Specifications
| Rated Power (W) | 1500 | 1500 | 1500 |
| Rated Voltage(V) | 48 | 60 | 72 |
| Control Mode | BLDC Square Wave | BLDC Square Wave | BLDC Square Wave |
| Max Current (A) | 70 | 70 | 70 |
| Undervoltage Protection (V) | 42 | 42 | 52 |
| Sensor Mode | Hall | Hall | Hall |
| Cooling Mode | Natural Cooling | Natural Cooling | Natural Cooling |
| Protection Level | IP55 | IP55 | IP55 |
| Working Temperature | -10℃ /70℃ | -10℃ /70℃ | -10℃ /70℃ |

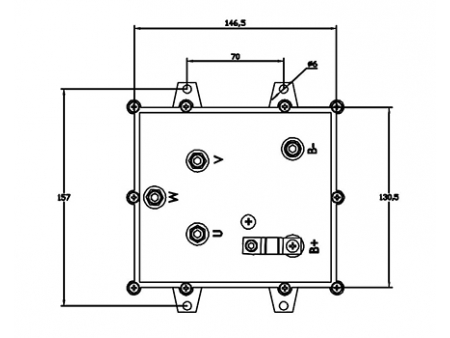

| Length(mm) | 157 | 157 | 157 |
Note: Customization of BLDC motor controller is available upon your requests and working conditions.
