1500W F2/F3 Hypoid Gear Motor
Request a Quote
Specifications (Continuous Rating)
| Model | Output Power | Voltage | Frequency | Rated Current | Rated Torque | Rated Speed | Locked Rotor Torque | Locked Rotor Current | Insulation Grade |
| W | V | Hz | A | N.m | r/min | N.m | A | ||
| | 1500 | 200 | 60 | 7.10 | 8.70 | 1650 | 15.60 | 30.00 | F |
| 220 | 50 | 6.70 | 10.2 | 1410 | 29.50 | 38.00 | |||
| | |||||||||
| 380 | 50 | 3.70 | 10.2 | 1400 | 22.30 | 31.00 | |||
| 460 | 60 | 3.30 | 8.50 | 1740 | 31.60 | 24.00 |
| Model | Output Power | Voltage | Frequency | Rated Current | Rated Torque | Rated Speed | Locked Rotor Torque | Locked Rotor Current | Insulation Grade |
| W | V | Hz | A | N.m | r/min | N.m | A | ||
| | 1500 | 200 | 60 | 7.10 | 8.70 | 1650 | 15.60 | 30.00 | F |
| 220 | 50 | 6.70 | 10.2 | 1410 | 29.50 | 38.00 | |||
| | |||||||||
| 380 | 50 | 3.70 | 10.2 | 1400 | 22.30 | 31.00 | |||
| 460 | 60 | 3.30 | 8.50 | 1740 | 31.60 | 24.00 |
Applications

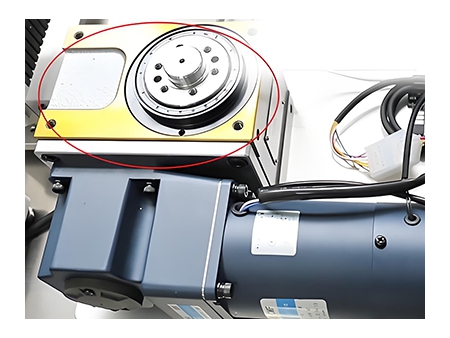

- Positioning Systems Cam dividers for precision automation.
- Conveyor Systems Belt conveyors, high-speed chains, roller conveyors.
- Food Industry Ice cream makers.
- Battery Manufacturing Kiln conveyor systems for anode and cathode materials.
- Custom Automation Non-standard automated systems.
Established in 1998, Zhongda has grown to become a leading high-tech enterprise in China that combines research, manufacturing, sales, and services in the sector of motor drives, micro motors, precision reducers, and integrated intelligent units. With a registered capital of 104 million Yuan, we have expanded to nine subsidiaries, employing over 1,800 dedicated individuals. In August 2017, we proudly made our mark on the main board of the Shenzhen Stock Exchange under the stock code: 002896.
