Diamond Grinding Segments, Grinding Head

Request a Quote

View All: http://idimas-diamondtools.com/1-3-diamond-grinding-wings.html

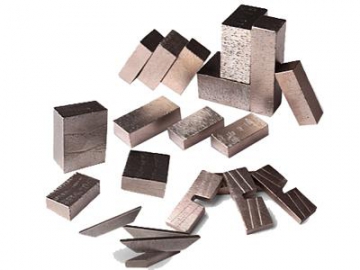

Diamond grinding strips and grinding heads (also known as grinder bits) are primarily used for wet and dry grinding of refractory material. We offer a variety of sintered grinding strips and electroformed grinding heads according to specific customer requirements.

Technical Parameters:

Sintered Grinding Strip

LENGTH mm	WIDTH mm	HEIGHT mm	NOTE
25	14	21	M8
25	16	19.8	M8
32.5	15	16	M8
41	16	25	M8
45	13	27	M8
45	14.5	27	M8
49	12	11.5	M8
50	12	25	M8
141.6	17	36	R450
152.4	19	36	R556

Electroformed Grinding Head

NAME	SPECIFICATION	SINK	WORKING THICKNESS
Flat grinder bit	Φ 90x211	Uniform distribution	2mm
Bore grinder bit	Φ 80x100	Uniform distribution	2mm
Grinder core bit	Φ 100x130	Uniform distribution	2mm
Grinder profiling bit	Φ 20x88	Internal water injection	2mm
Spherical grinder bit	Φ 147x77	Internal water injection	2mm
Straight rod grinder bit	Φ 20x110	Internal water injection	2mm

Remark: Other specs are available upon request.
