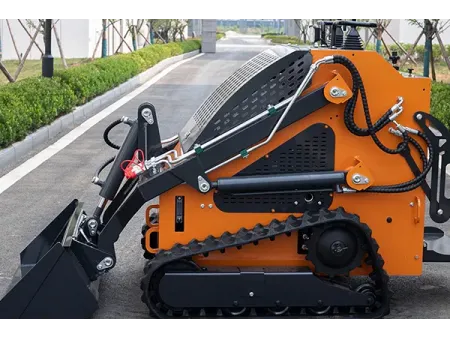

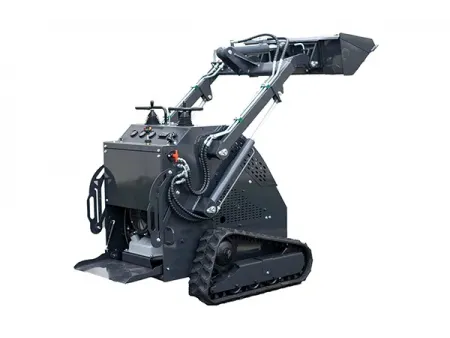

T460 Mini Skid Steer Loader

Request a Quote

Website: http://sutemachinery-en.com/3-3-3-mini-skid-steer-loader.html

Specifications

Certification	ISO, CE, EPA, EURO5
Engine brand	Electric/Koop/Runtong/B&S
Rated power	8kW (72V, 200Ah)/15kW/19.2kW/17kW
Number of cylinders	2
Air intake way	Naturally aspirated
Emission standard	EURO5/EPA
Rated operating capacity	300kg
Max. operating capacity	400kg
Max. breakout force	4.5kN
Bucket capacity	0.12m³
Driving speed	0-6km/h
Total cycle time	9s
System operating pressure	17-21bar
Fuel tank capacity	10L
Operating weight	1200kg
Track size (L×W×T)	180×72×35mm
Vehicle height	1300mm
Length with standard bucket	2140mm
Vehicle width	1050mm
Length without standard bucket	1850mm
Bucket width	1050mm
Tail length	500mm
Height at maximum extension	2400mm
Height to the bucket pin	1870mm
Max. height as lay the bucket flat	1720mm
Dumping height	1510mm
Discharge distance	250mm
Track contact with ground length	800mm
Ground clearance	110mm
Bucket flip angle on the ground	27°
Bucket flip angle at highest position	114°

Features

Multiple power configurations: Available with Koop 292, Runtong, or Briggs & Stratton engines, as well as an electric motor option, to meet various operating requirements
Centralized control console
High-performance hydraulic cylinders
Wear-resistant hose system
High-intensity LED lighting
Quick-change attachment compatibility that supports a variety of tools

Detail Highlights

Instruction Manual

Push both control levers forward, the loader moves forward
Pull both control levers backward, the loader moves backward
Push the left control lever left, the boom lifts
Push the left control lever right, the boom lowers
Push the right control lever left, the bucket dumps
Push the right control lever right, the bucket curls
Push one lever forward and pull the other backward, the loader performs a 360° turn in place
