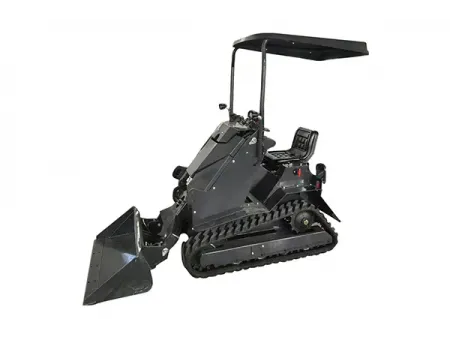

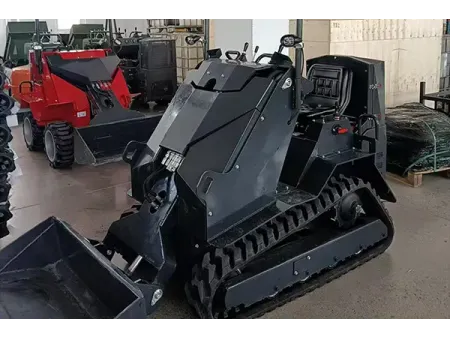

T390 Mini Skid Steer Loader

Request a Quote

Website: http://sutemachinery-en.com/3-3-2-mini-skid-steer-loader.html

Specifications

Certification	ISO, CE, EPA, EURO5
Engine brand	Electric/Koop/Runtong/Zhongzheng/B&S
Rated power	6kW (72V, 125Ah)/7.5kW/8.6kW/8.5kW/9.9kW
Number of cylinders	1
Air intake way	Naturally aspirated
Emission standard	EPA/EURO5
Rated operating capacity	200kg
Max. operating capacity	300kg
Max. breakout force	3.5kN
Bucket capacity	0.12m³
Driving speed	0-6km/h
Total cycle time	9s
System operating pressure	17bar
Fuel tank capacity	5L
Operating weight	1070kg
Track size (L×W×T)	180×72×45mm
Vehicle height	1250mm
Length with standard bucket	2400mm
Vehicle width	960mm
Length without standard bucket	1900mm
Bucket width	1050mm
Tail length	220mm
Height at maximum extension	2620mm
Height to the bucket pin	2000mm
Max. height as lay the bucket flat	1830mm
Dumping height	1470mm
Discharge distance	600mm
Track contact with ground length	1300mm
Ground clearance	230mm
Bucket flip angle on the ground	27°
Bucket flip angle at highest position	114°

Features

Multiple power options: Available with Koop, Runtong, or Briggs & Stratton engines, as well as an electric motor, meeting diverse operational needs
Centralized control panel
Hydraulic system
Equipped with wear-resistant hydraulic hoses and elastic rubber parts for enhanced reliability and long service life
LED lighting system
Multi-functional attachment interface that allows quick connection of various tools for different tasks
