The Foton Aumark 3.5-ton light truck is engineered for efficiency and reliability, delivering strong performance with its 2.8 L ISF diesel engine (110 kW / 450 Nm) paired with a 5-speed manual transmission. Certified to Euro V standards, it combines power with environmental compliance.

Built on a 180 mm high-strength steel frame with 5 2 rear leaf springs, the light truck handles its 3.5-ton payload, while the 4170 × 2100 mm cargo box easily accommodates building materials and equipment. Safety comes standard with ABS, EBD, ESP, and full disc brakes, further supported by an air brake system and wear indicators for secure braking on downhill routes under heavy loads.

Driver-focused features include a 120 L aluminum fuel tank for extended range, hydraulic steering, electrically adjustable mirrors, fabric seats, and a USB interface, all designed to reduce fatigue and improve comfort during daily operations. This makes it a reliable and efficient choice for both urban and regional logistics.

Specifications

Light Truck (Foton Aumark S), 3.5T
Weights	Gross vehicle weight (GVW)		6000
	Curb weight (flatbed) (kg)		2978
	Curb weight (chassis) (kg)		2553
Dimensions	Vehicle width		2060 (regular cab, single row of seats)
	Wheelbase (mm)		3360
	Front/rear track width		1730/1710
	Ground clearance		≥170
	Front/rear overhang		1110/1525
	Vehicle dimensions (flatbed) (mm)		5995×2214×2300
	Vehicle dimensions (chassis) (mm)		5960×2153×2230
	Cargo box dimensions		4170×2100×400
Performance	Max. speed (full load/no load) (km/h)		115/115
	0-80km/h acceleration (sec)		≤35
	Max. gradeability (I gear)		≥30%
Engine	Engine model		ISF2.8s5148T
	Fuel type		Diesel
	Technology		Electronic common-rail direct injection
	Power (kW)		110
	Torque (N)		450
	Displacement (L)		2.78
	Emission standard		Euro V
	Post-processing		SCR
Powertrain & Fuel System	Cooling fan		Dual-stage silicone oil clutch fan
	Air intake		High-mount air intake
	Air filter		Paper filter element
	Fuel tank capacity		120L
	Fuel tank material		Aluminum alloy
	Urea tank capacity		14L
Clutch	Clutch type		Single disc, dry type diaphragm spring
	Clutch size		Ø308×Ø190
Transmission	Transmission model		5S368
	Transmission type		5-speed manual transmission
	Gear ratio		Ⅰ:5.016 Ⅱ:2.672 Ⅲ:1.585 Ⅳ:1.000 Ⅴ:0.770 R:4.783
	PTO		×
Axles	Front axle type		Non-disconnecting I-beam
	Rated load of front axle (t)		2.4
	Rear axle type		Stamped and welded integral housing
	Rated load of rear axle (t)		4.5
	Rear axle ratio		4.3
Chassis frame	Frame longitudinal beam section size (mm)		180×65×4.5
	Frame structure		Riveted
Suspension	Front suspension		Non-independent suspension
	Leaf spring (front suspension)		Parabolic spring (3 leaves)
	Front stabilizer bar		Optional
	Rear suspension		Non-independent suspension
	Leaf spring (rear suspension)		Multi-leaf spring (5 2 leaves)
	Rear stabilizer bar		Optional
Tyre	Standard tyre		205/75R16
	Optional tyre		×
	Number of tyres		6 1
	Tyre type		Tubeless
	Rim material		All-steel
Steering System	Steering gear		Non-through recirculating ball steering gear
	Assist		Hydraulic power assist
	Steering column adjustment		Height tilt adjustment
	Energy absorbing steering column		Standard
	Multifunction steering wheel		Optional
Brakes & Safety	Brake	Brake type	Air brake
		Front brake	Disc, Standard
		Rear brake	Disc, Standard
		Automatic slack adjuster	Standard
		Brake pad wear alarm	Standard
		Exhaust brake	Standard
		Parking brake	Air brake
		Air reservoir material	Aluminum alloy
	Brake configurations	ABS	Standard
		EBD	Standard
		Electronic Stability Control (ESP)	Standard
	Safety features	Door open warning	Standard
		Key reminder	Standard
		Door impact beam	Standard
		Front bumper	Standard (integral PP material)
		Side protection	Optional
		Rear protection	Standard (lateral)
		Rear underrun protection	Standard
		Reversing radar	Optional
		Rear-view camera	Optional
Electrical & AC	Battery	Battery voltage	12V
		Battery capacity	120Ah
		Battery type	Maintenance-free battery
	Lighting	Headlamp adjustment	Electric
		Side turn lamp	Standard
		Turn lamp on door	Standard
		Front fog lamp	Standard
		Interior reading lamp	Standard
		Marker lamp	Standard
		LED DRL lamp	Optional
	Infotainment	Number of speakers	2
		MP3 (radio USB)	Standard
		MP5 multimedia (bluetooth radio MP3 USB AUX rear camera)	Optional
	Air conditioning	Electric control	Optional
		Independent heating	Standard
	Others	GLONASS	Standard
		PTO switch	Standard
		USB charging port	Standard
		Cigarette lighter	Standard
Cab Interior	Seat	Number of seats	3
		Driver seat adjustment	Manual forward/backward adjustment, fixed height
		Passenger seat adjustment	Non-adjustable
		Upholstery	Knitted luxury fabric
		Headrest	Separate type
		2-point safety belt	Center seat
		3-point safety belt	Driver/passenger seat
		Adjustable height of safety belt	Driver only
		Seatbelt reminder	Standard
		Seat heating	Standard
		Driver seat armrest	Standard
	Windows & mirrors	Window control	Electric
		Interior rearview mirror	Standard
		Lower side mirror	Standard
		Electrically adjustable rearview mirror	Standard
		Electrically heated rearview mirror	Standard
	Interior equipment	Door grab handle	Standard
		A-pillar grab handles (L/R)	Standard
		Overhead document holder	Standard
		Console storage box	Standard
		Cup holder	Standard
		Sun visor (driver & passenger)	Standard
	Others	Roof deflector	Optional
Cargo Box	Cargo box material		Steel plate
	Floor		Single layer
	Door opening		Three-side opening
Others			Handbrake (relocated backward), engine cover, battery cover, chassis cover, anti-rust underbody protection
Optional Features			Front & rear stabilizer bars, Reversing radar, MP5 multimedia multifunction steering wheel rearview camera, daytime running lights (DRL), flatbed cargo box, roof deflector

Details Showcase

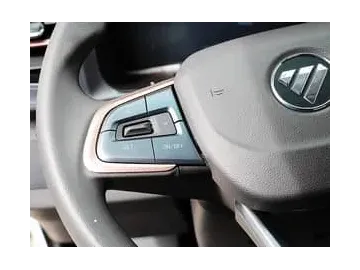

Steering wheel

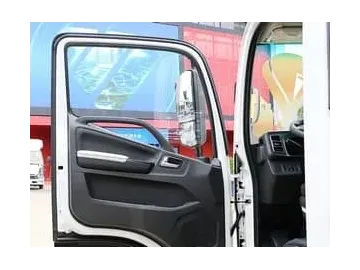

Truck door
Electrical system
Tires
