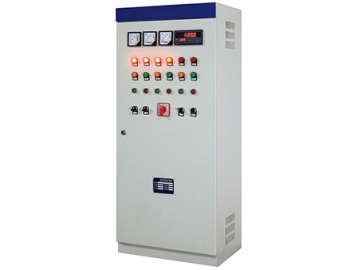

HVAC Panel
HVAC panels are designed for the building services control systems such as heating, ventilation, air conditioning, lighting, and security. They are suitable for large public and commercial buildings such as offices, malls, hospitals, and more.
Our HVAC panels are designed to work with either existing or newly installed equipment and can oversee single or multiple service control systems. They are equipped with air circuit breaker, fuse, contactor, and thermal relay to protect electrical circuits and electric appliances from damage caused by overload or short circuit. There are neutral bonding screws designed inside the enclosure and cabinet doors to ensure operator safety. Our HVAC panels are easy to inspect and maintain. We also offer customization services to meet specific customer requirements.
Rated voltage: 380/220V
Rated frequency: 50HZ
IP grade: IP30
- Ambient temperature: -50℃~+40℃, 24h average temperature ≤+36℃.
- Altitude: ≤ 2000m.
- Relative humidity: ≤50% at the highest temperature +40℃. Higher relative humidity is allowed at low temperature, for example, 90% at +20℃. Condensation may appear because of temperature range, and this phenomenon should be considered.
- Gradient: ≤ 5°, vertical installation.
- Environments with no risk of corrosion, vibration, or impact
