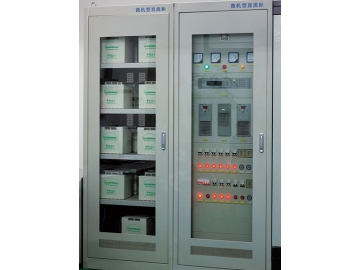

Power Distribution Panel, Power Distribution Enclosure
Request a Quote
The power distribution panel is a flexible, reliable solution for electric power distribution in integrated breakers, metering and surge protection applications. It is designed to meet both safety and quality demands in distribution systems with a rated voltage of 380V, AC 50Hz. Its stainless-steel enclosure ensures the durability in a variety of conditions.
Parameters
- Rated insulation voltage: 690V
- Rated voltage: 380V
- 1min power frequency voltage: 2500V
- Major loop rated current: 大于630A
- Branch current: 100~630A
- Rated short circuit breaking current: 16, 31.5, 4, 50（KA）
- IP grade: IP43
Normal Operating Conditions
- Ambient temperature: -50℃~+40℃, 24h average temperature ≤+36℃.
- Altitude: ≤ 2000m.
- Relative humidity: ≤50% at the highest temperature +40℃. Higher relative humidity is allowed at low temperature, for example, 90% at +20℃. Condensation may appear because of the temperature range, and this phenomenon should be considered.
- Gradient: ≤ 5°, vertical installation.
- Environments with no corrosion, severe vibration, or impact risks
