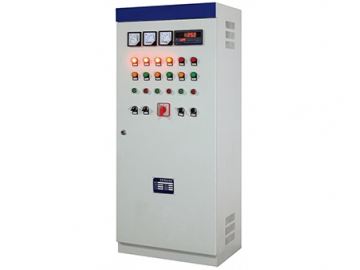

Process Control Panel

Request a Quote

View All: http://zhenwei-electric.com/3-2-process-control-panel.html

Process control panels are designed to provide all control functions for a basic water supply system. Our panels control multiple water pumps and automatically switch to the backup water pump in the event the primary pump malfunctions. This process control panel is widely used in malls, hospitals, public buildings, and residential buildings. We offer customized process control panels with a variety of electrical control devices to meet specific requirements.

Parameters

Rated voltage: AC380V
Rated circuit voltage: AC220V
Rated frequency: 50Hz
Feedback signal: Voltage DC0-10V Current DC4-20mA
Accommodation mode: Digital PID
Adjustment accuracy: 0.01MPa
Pressure range: 0.1～2.7MPa

Normal Operating Conditions

Ambient temperature: -50℃~+40℃, 24h average temperature ≤+36℃.
Altitude: ≤ 2000m.
Relative humidity: ≤50% at the highest temperature +40℃. Higher relative humidity is allowed at low temperature, for example, 90% at +20℃. Condensation may appear because of temperature range, and this phenomenon should be considered.
Gradient: ≤ 5°, vertical installation.
Environments without risk of corrosion, vibration, and impact
