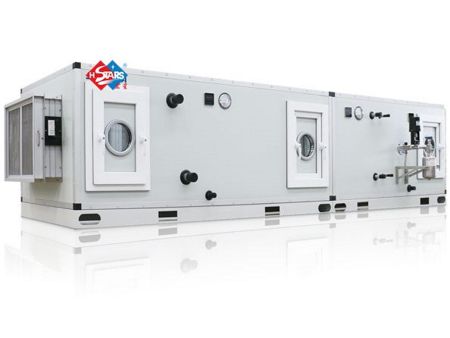

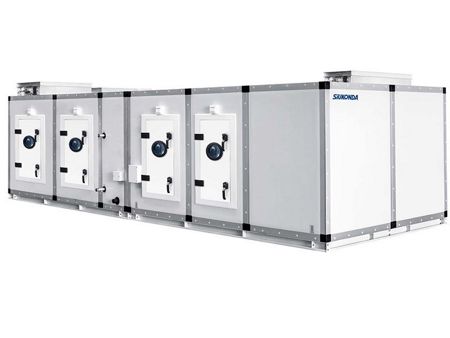

Modular Air Handling Unit
This series of air handling units utilizes modular design, and is configured for air volumes processing from 1000m³/h to 250000m³/h. It is equipped with various options to meet the individual needs of users and the needs of different air treatment occasions, such as cooling, dehumidification, heating, humidification, spraying, filtration and purification, disinfection and sterilization, energy recovery, and noise reduction.
-
Box
This unique box panel utilizes both the durability of a traditional frame structure and the ease-of-installation of a modular structure, thanks to its patented three-dimensional interlocking design. Crafted with precision and boasting excellent sealing qualities, its F9 standard of anti-air leakage is compliant with EN1886 standards. Additionally, its frame is made of aluminum alloy profile with strengthening heat insulation plastic material, providing immense durability and forming a three-dimensional composite cold bridge design which eliminates condensation. For even better airtightness, several well-matched seals are placed between the panels. These qualities make the box assured to meet the European EN 1886 D1 grade.
-
Panel
The cabinet panel features a sandwich structure, expertly designed for maximum efficiency. At its core, high-performance polyurethane insulation material provides remarkable thermal conductivity of ≤0.03W/mk, while maintaining a density of 50 kg/m3. To eliminate cold bridges between the double-layer board and aluminum profile, we utilize PVC edge strips to create partitions.Our innovative composite sandwich insulation panel combines the durability of color steel plate and galvanized sheet with the insulation power of rigid polyurethane material. Rest assured, all components are compliant with the stringent fire performance requirements of the CSTBM1 fire rating.
-
Humidifier
Dry steam humidifiers, electrode humidifiers, wet film humidifiers and high pressure spray humidifiers are all viable choices.
-
Sound-absorbing
Leveraging cutting-edge microplate technology and sound-absorbing cotton encased in perforated plates, our system caters to various conditions and fan noise level requirements. As air flows through the plates and sound-absorbing material, it effectively reduces medium and high-frequency noise. The microplate's innovative internal cavity design relies on resonance sound absorption, ensuring exceptional performance without the risk of environmental contamination or moisture issues. This design effectively mitigates low-frequency and specific frequency noise. Our sound-absorbing solution is divided into two distinct sections: return air and supply air sound absorption, providing comprehensive noise reduction throughout the system.
-
Filter
Ensuring superior quality, the primary and medium-efficiency filtration adheres to GB/T14295-2008 in regards to mechanical properties, antistatic properties, moisture absorption, resistance, flame resistance, and filtration efficiency.
-
Exhaust air decontamination
The air is ionized by a electric field, creating positively charged particles as minuscule as 0.1 micrometer. By application of a high-voltage electrostatic field, these particles are quickly absorbed by a dust collection plate, resulting in an incredibly effective 98.9% dust removal and purification.
-
Sterilization and purification
This sterilization and purification technology uses a discharge electrode to generate high-pressure plasma that eradicates harmful bacteria, viruses, dust mites, and other microorganisms in the atmosphere. Its sterilization efficiency is higher than 95% as residue particles are fused and adsorbed onto the dust plate. This helps to eliminate bacteria, viruses, and infectious agents circulated through central air conditioners and restricts the spread of any diseases. It even guarantees a 99% rate of sterilization to guarantee the safety of your air.
-
Activated carbon adsorption
1. Odor adsorption and deodorizationThis special section of a waste water treatment system utilizes activated carbon to clean water from pollutants. Activated carbon has a unique ability to trap particles, either through physical means, such as absorption and adsorption, or through chemical processes. This process allows for the safe and effective removal of solids, toxins and other contaminants from the water, leaving a pure and healthy liquid for discharge or irrigation.
2. Formaldehyde, benzene and other hazardous organic volatiles (TVOCs) absorptionType of activated carbon N4G1 N4S1 N4A1 M4B1 N4F1 N4M1 Usage General gas Odor Acid gas Alkaline gas Formaldehyde Mercury vapor
