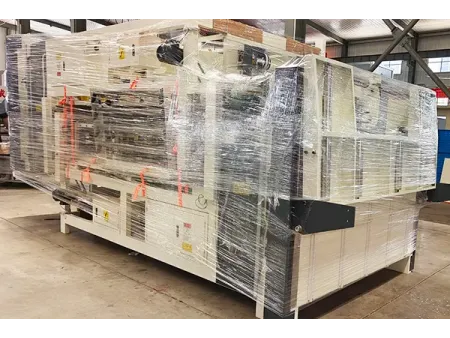

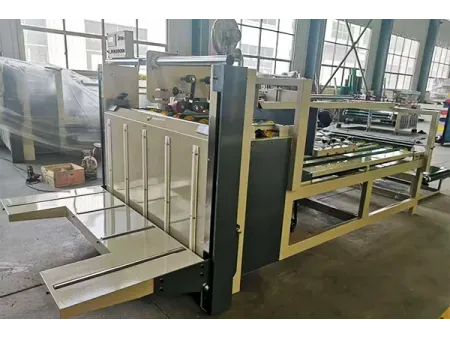

Semi-Automatic Folder Gluer Machine, CZYL-SFM
Request a Quote
Carton Box Folding and Gluing Machines
The semi-automatic folder gluer machine is designed to replace traditional copper nail binding. This machine improves production efficiency, ensures strong adhesion, and delivers high-quality finished cartons, making it an ideal choice for packaging manufacturers.
Features
- Eco-Friendly Bonding
Eliminates traditional copper nail binding, reducing waste and enhancing sustainability. - Improved Productivity
Increases efficiency compared to manual methods, while maintaining consistent product quality. - Reliable Machine Structure
Built with a robust main frame that integrates frame, lifting table, and conveying systems. - Comprehensive Components
Includes front and middle conveying devices, front correcting unit, middle pressing unit, finished side output unit, and a reliable electrical control system for smooth operation.
Specifications
| Max. size (length width) (mm) | 2800 |
| Min. size (length width) (mm) | 340 |
| Max. size (width height) (mm) | 1515 |
| Min. size (width height) (mm) | 250 |
| Cardboard feeding height (mm) | 900 |
| Motor power (kW) | 2.3 |
| Machine weight (kg) | 2000 |
| Machine speed (sheets/min) | 40 |
| Machine dimensions (L×W×H) (mm) | 5500×1800×2000 |
