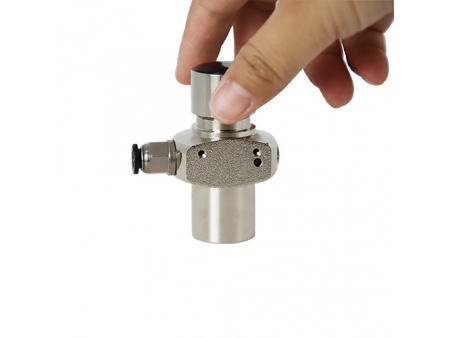

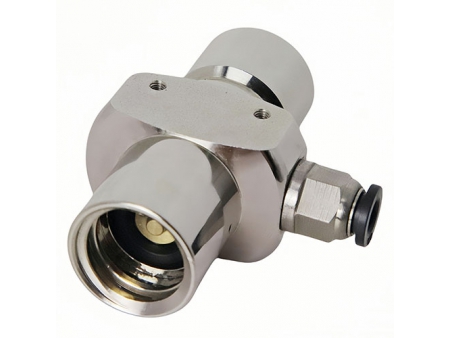

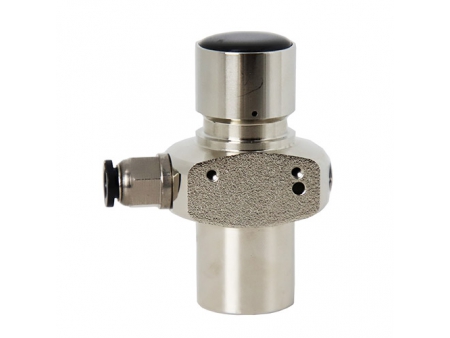

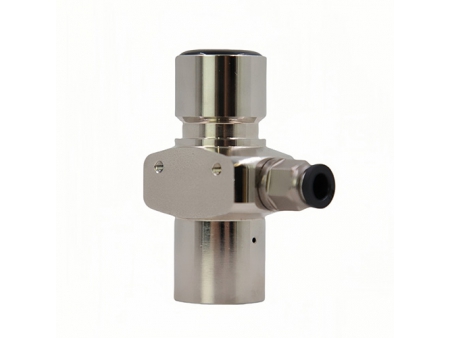

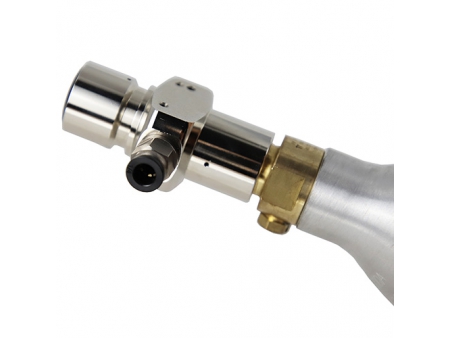

BP07 Commercial Built-in Soda Machine Pressure Regulator, Carbonation Level up to 6g/L
Request a Quote
View All: http://minikegdispenser.com/3-4-1-BP07-commercial-build-in-soda-machine-pressure-regulator.html
- Medium: CO₂
- Preset Output Pressure: 4bar, 5bar
- Inlet: TR21×4/⌀ 21~6ACME
- Outlet: 1/4"tube /5/16"tube
- MOQ: 100 pieces
- OEM sample available for brands
The commercial soda machine pressure regulator is available in two material options: solid brass or aluminum alloy. Using automatic precision CNC machining, this regulator withstands pressures up to 250 bar. It features a built-in low-pressure safety valve that effectively mitigates the risk of pressure exceeding 7bar. The quick-connect hose output makes it ideal for integration within soda machines. With a preset output pressure of 4-5 bar, this pressure controller delivers a perfect carbonation level of up to 6g/L, ensuring consistently high-quality soda production.
Specifications
Size (H*W): 68mm x25mm
Model | | |
Body Material | 6061-T6 | Hsi59-0.5 |
Surface Treatment | Hard anodizing | Passivating |
Medium | CO₂ | |
Operating Temperature | -20℃~65℃ | |
Preset Output Pressure | 4bar, 5bar | |
Pressure Accuracy | ±0.3bar | |
Opening Pressure of SRV | 7bar | |
Inlet Pressure | 10~120bar | |
Proof Pressure | ≥250bar | |
Leak Rate | ≤0.2g/day | |
Inlet | TR21×4/⌀ 21~6ACME | |
Outlet | 1/4"tube /5/16"tube | |
Mounting Method | 2 Mounting holes M3/M4 | |
Unit Weight | 140g | 250g |
